Advantech ACP-4320

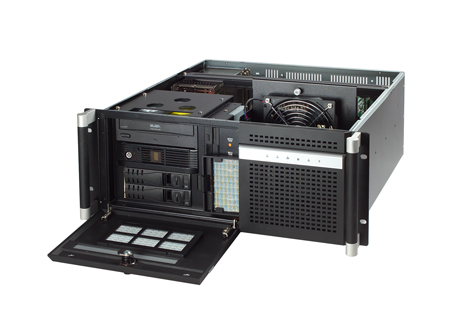

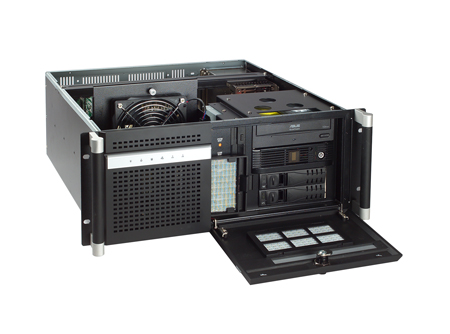

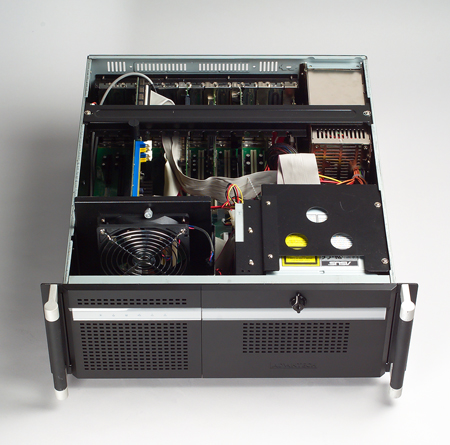

Quiet 4U Rackmount Chassis with Dual Hot-Swap SAS/SATA HDD Trays

Advantech ACP-4320
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF

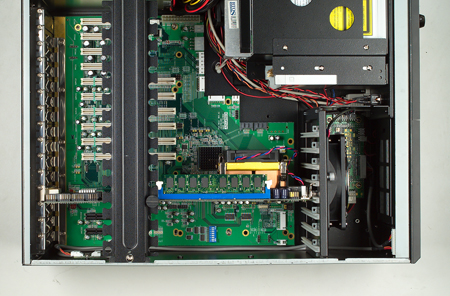

  • Supports either an ATX motherboard or a PICMG backplane with up to 15 slots
  • ACP-4010 supports one or two systems in a single chassis
  • ACP-4010 supports two 5.25" and two 3.5" disk drives
  • ACP-4320 supports dual SAS/SATA HDD trays for data monitoring applications
  • LED indicators and alarm notification for system fault detection and network connection
  • Lockable front door prevents unauthorized access
  • Low noise system fans
  • Built-in Intelligent System Module enabling whole system fan control and remote manageability
As a 19" industrial grade 4U rackmount enclosure, the ACP-4320 supports abundant storage capacity above 1 TB and comes with an intelligent system management module. This unit is ideal for data intensive business, multimedia, and surveillance applications when rack space optimization with high data storage capacity is crucial.
ProdGrafik
Front I/O Interface

USB2.0
2


Cooling

System Fan
System fan speed referring to chassis thermal sensor, or CPU temperature

Air Filter
Yes

Fan
1(12 cm/74 CFM) + 1 (6cm / 28 CFM)


Environment

Operational Temperature
0 ~ 40° C (32 ~ 104° F)

Non-Operational Temperature
-20 ~ 60° C (-4 ~ 140° F)

Operating Shock
10 G (with 11 ms duration, half sine wave)

Operating Humidity
10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity
10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)
1 Grms

Non-Operating Vibration (5 ~ 500 Hz)
2 G

Non-Operating Shock
30 G


Physical Characteristics

Weight
17.6 kg (38.7 lb)

Dimensions (W x H x D)
482 x 177 x 479 mm (19" x 7" x 18.9")


Disk Drive Bay

3.5" Front-Accessible
2 (compatible with 3.5" or 2.5" devices)

5.25 External Bay
2


Miscellaneous

LED Indicators
Power, HDD, temperature, fan, LAN1, and LAN2

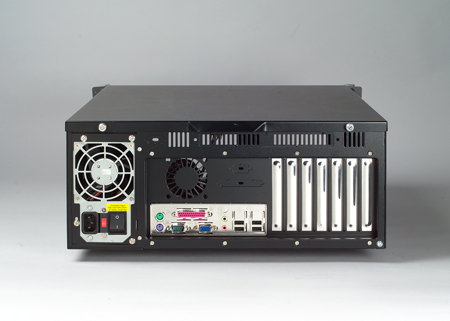

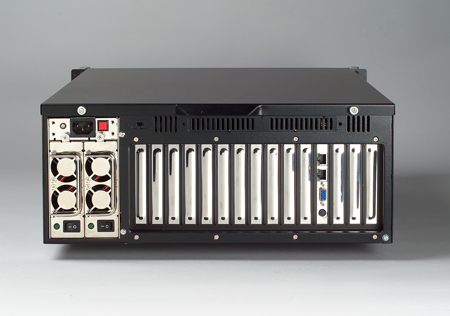

Rear Panel
  • ACP-4320BP-00BE       One 9-pin D-Sub opening
  • ACP-4320BP-40BE       One 9-pin D-Sub opening
  • ACP-4320MB-00BE       Five 9-pin D-Sub & one 68-pin SCSI openings
  • ACP-4320MB-40BE       Five 9-pin D-Sub & one 68-pin SCSI openings



Intelligent System Module

Remote Monitoring
CPU/System fan speed , CPU/System temperature , motherboard voltage


EN61000-4-2/34/5/6/8
