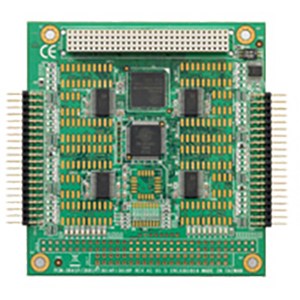

Advantech PCM-3642I
8-port RS-232 Module
Ähnliche Produkte
Seite drucken
Preis anfragen
Notizliste anzeigen
Data-Sheet (605.5 kB) Eigenschaften
- Transmission speeds up to 460 kbps
- Shared IRQ settings for each port
- Standard PC ports: COM1, COM2, COM3, COM4 compatible
- Powerful and easy-to-use utility (ICOM Tools)
- Supports Windows® 2000/XP/Vista
Weitere Informationen
Specifications
General
Card Interface PCI-104 Connectors PCM-3642I: 2 x 40-pin box header Ports PCM-3642I: 8 Power Consumption +5 V @ 250 mA (max.) Communications Data Bits 5, 6, 7, 8 Data Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 Parity None, even and odd Speed 50 bps ∼ 460.3 kbps Stop Bits 1, 1.5, 2 Protection EFT Protection 1,000 VDC Termination Resistor 120 Ω Environment Operating Humidity 0 ∼ 90 % RH Operating Temperature 0 ∼ 65° C (32 ∼ 149° F) (IEC-68-1-1, 2) Storage Temperature 25 ∼ 80° C (-13 ∼ 176° F)
