MOXA UC-7101

Eigenschaften  Beschreibung  Weitere Informationen

Mini RISC-based Ready-to-Run Embedded Computer with 1 Serial Port, LAN, SD

Eigenschaften

• MOXA ART ARM9 32-bit 192 MHz processor

• 16 MB RAM (about 12 MB of user pogrammable space )

• 8 MB Flash ROM (about 4 MB of user programmable space )

• One 10/100 Mbps Ethernet

• One software-selectable RS-232/422/485 serial port

• Serial port speed from 50 bps to 921.6 Kbps, supporting ANY BAUDRATE

• SD socket for storage expansion

• Built-in RTC, buzzer, WatchDog Timer

• Built-in µClinux platform (Linux platform for Plus version)

• -40 to 75°C wide temperature model available

Beschreibung

The MOXA UC-7101 may be Moxa’s smallest RISC-based communication platform for embedded applications, but it is also one of the most powerful. The UC-7101 comes with one RS-232/422/485 serial port and a 10/100 Mbps Ethernet LAN port to provide users with a versatile industrial communication and embedded computing platform. The UC-7101 embedded computer uses the MOXA ART ARM9 192 MHz RISC CPU, which provides a powerful computing engine and communication functions, but without generating too much heat. The built-in 8 MB NOR Flash ROM and 16 MB SDRAM give users plenty of storage capacity, and the SD socket provides greater flexibility for running a variety of applications. The LAN port built into the ARM9 CPU allows the UC-7101 computer to be used as a communication platform for basic data acquisition and protocol conversion applications, and the computer’s RS-232/422/485 serial port allows you to connect one serial device for data acquisition applications. The UC-7101 comes with the μClinux operating system pre-installed. Software written for desktop PCs is easily ported to the UC-7101 computer with a GNU cross complier, so that you will not need to spend time modifying existing software code. In addition, a wide temperature model is also available. It supports an operating temperature range of -40 to 75°C, making it suitable for any harsh environment. These features make the UC-7101 embedded computer an ideal solution for a variety of industrial automation applications.

Weitere Informationen

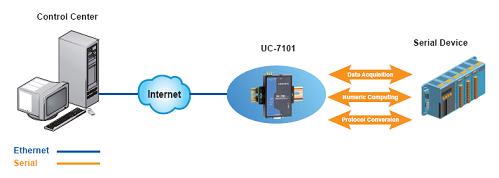

Applications

1. Protocol conversion
2. Remote access
3. Data acquisition
4. Numeric computing
5. Event handling
6. Port buffering

1. Industrial automation
2. Building automation
3. Transportation automation
4. SCADA systems
5. Medical automation
6. Energy automation
