HW group STE2 LITE

STE2 LITE is a simple-to-use LAN & WiFi thermometer for remote locations measurement. Whenever a temperature exceeds the specified range an e-mail notification is sent. With external SMS-GW-LTE or Portal service it can also alert you with an SMS or Voice call.

Even though there is only one RJ11 port, STE2 LITE can monitor up to 4 sensor values from external sensors (Relative Humidity, CO2, VoC, 4-20mA and others). Several RJ11 sensors can be daisy-chained. Also one physical sensor can measure several values (°C + %RH = 2 values).

The STE2 LITE package includes Temp-1Wire 1m temperature sensor and a 5V international power adaptor.


Applications and usage:

• Remote temperature alert sensor (Server environment, A/C unit cooling failure alert).
• Simple to use server room environment monitoring.
• Food storage (control of storage conditions, creation of HACCP logs using application software).

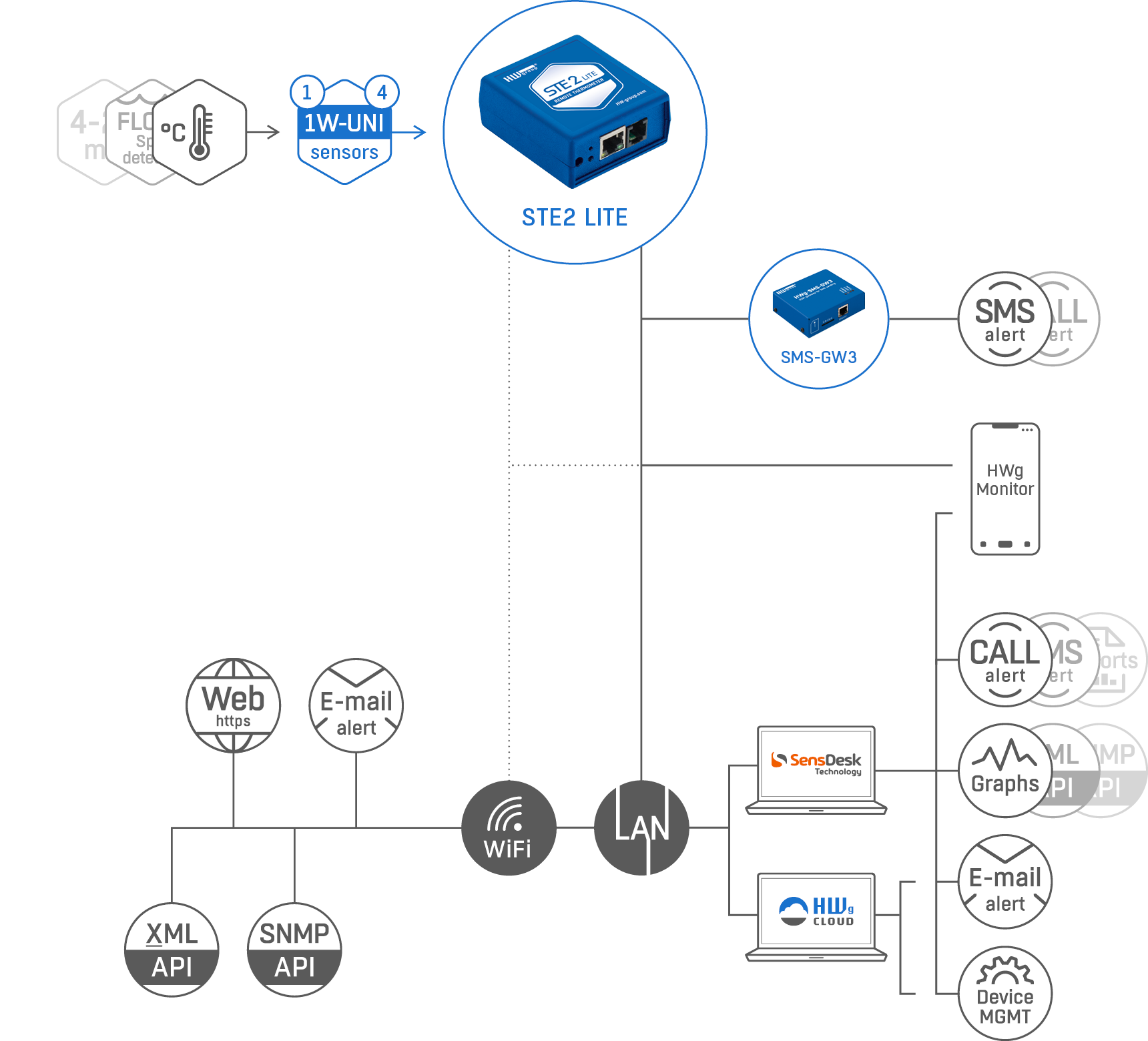

• LAN/WiFi thermometer which can be integrated with 3rd party SNMP system or with Portal (SensDesk Technology).

Device features:

• Temperature sensor included in the package
• Additional °C/%RH sensor can be connected
• Secured product
• External SMS gateway supported
• Portal supported
• Portal based Device Invalid alert (Email alert)DK

Specifications

Technical specifications
External power	5V Jack ø3.5x 1.35mm
Temperature range	Operating: -10°C-60°C Storage: -30°C-60°C / 0%RH-95%RH
Dimensions/weight	68 x 63 x 32 (WxHxD) / 64g
Conectivity	LAN, WiFi
External sensors and detectors
Sensors	1 port RJ11 (4 sensor values in total)
Compatible sensors	RJ11 sensors from HW group (1W/1W-UNI)
Sensors you can monitor	Temperature, Relative Humidity, Voltage, AC/DC Current,       Flood detection, CO2, VoC, Light intensity & many more...
Communication
M2M Open API	SNMP v1, XML over HTTP, HWg-Push
Alarms	E-mail, HWg-Push, SMS & Voice Call (with assistance of SMS-GW3 LTE)
Software/Services
SensDesk Technology portal	Online remote monitoring service. Graphs, alerts, device management.
HWg-cloud.com	Free of charge portal service
Mobile App	HWg Monitor
Other software	3rd party software, HWg-SDK
