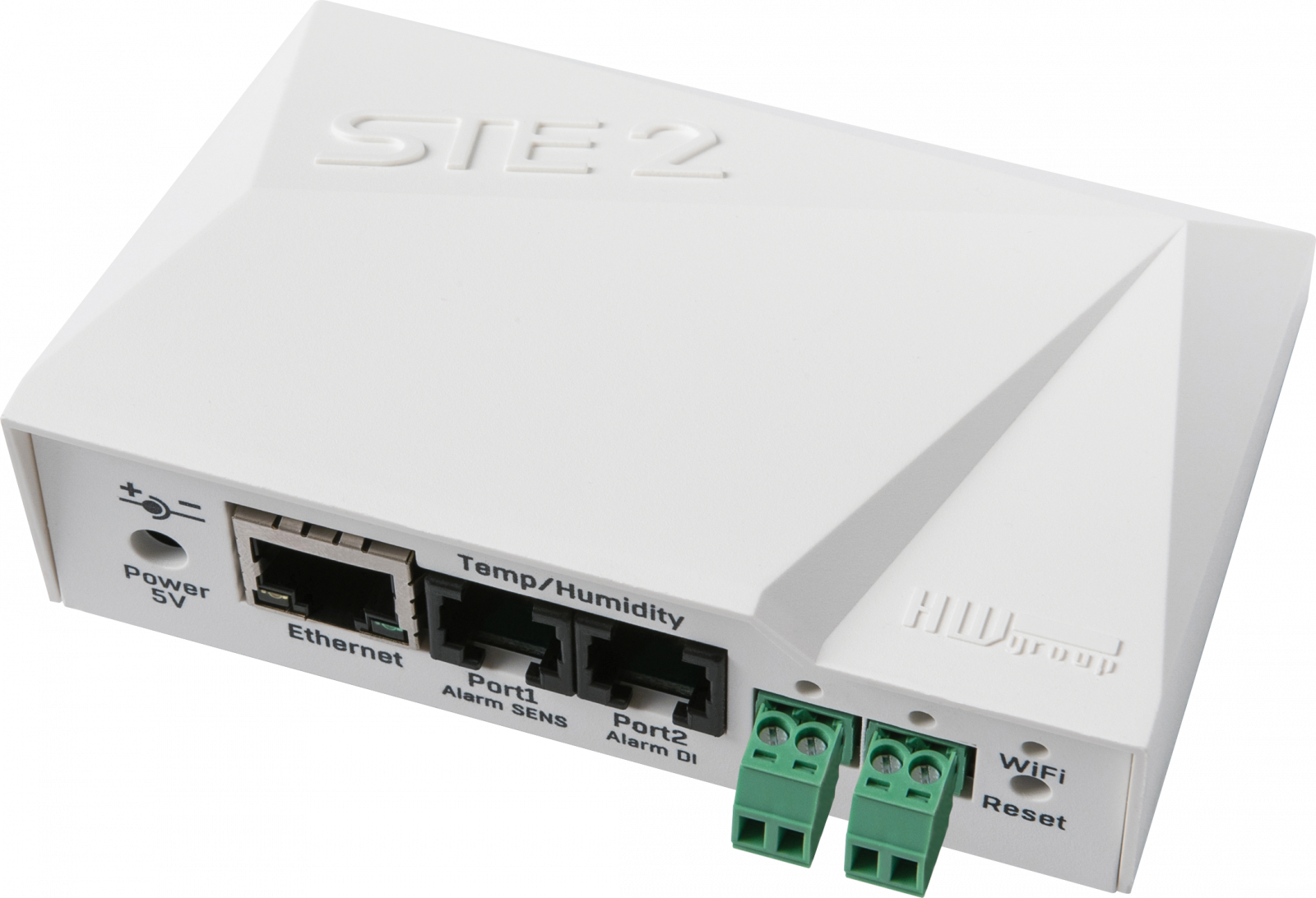

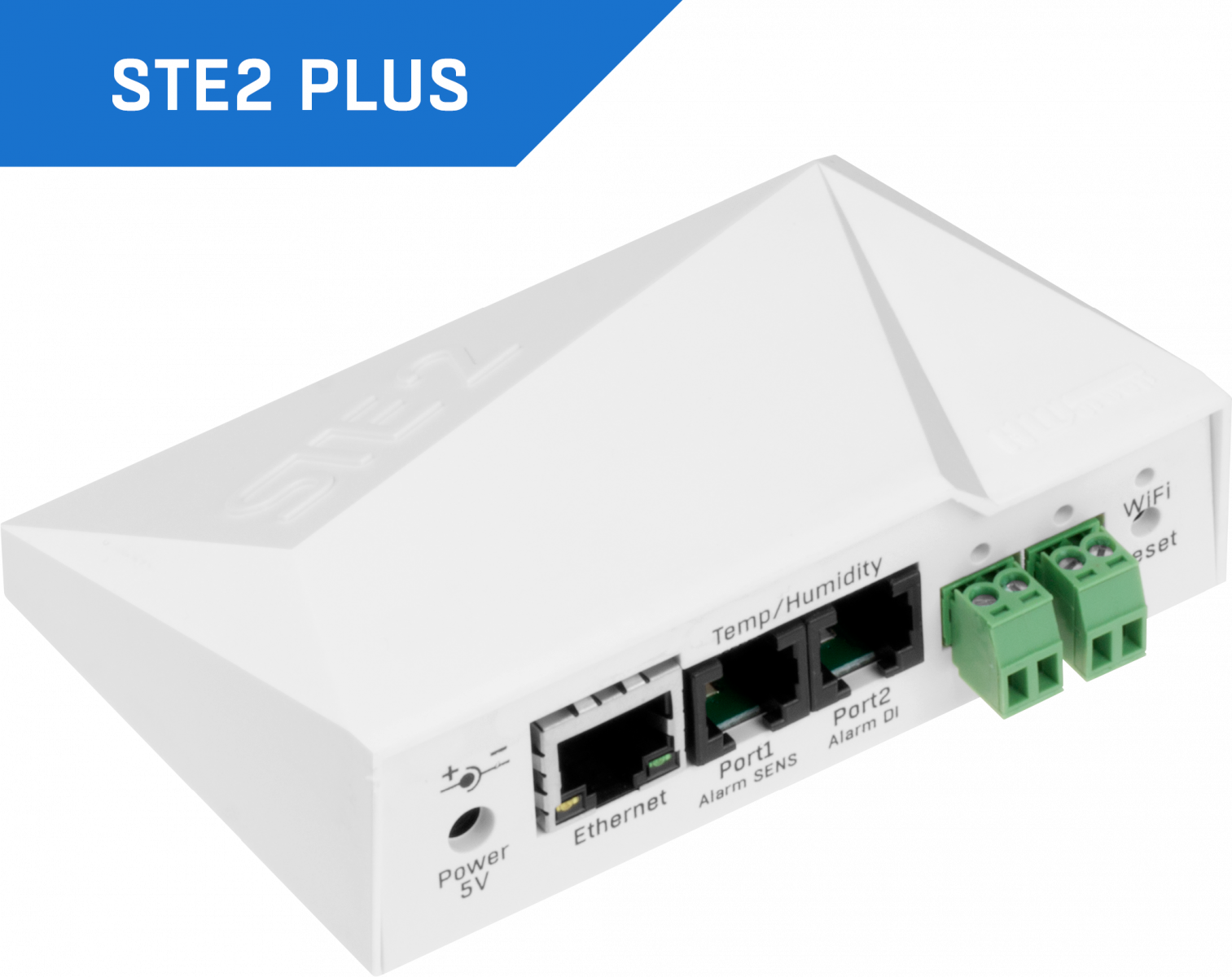

HW group STE2 PLUS

STE2 PLUS is a professional LAN & WiFi remote sensors monitoring product. You can connect external sensors (up to 15 values) to 2x RJ11 ports. External detectors can be connected to 2x DI (Digital Input). The STE2 PLUS is a professional product with HTTPS custom certificates, SNMPv3, SNMP Traps and IPv6.

The STE2 PLUS package includes a power adaptor and 3m outdoor temperature sensor for remote temperature measurement. The device can be connected to the network via WIFI or LAN (RJ45) with PoE power support.

Sensor values are displayed via the device's web interface, in API (SNMP or XML) on the Portal or on the mobile/tablet screen (HWg Monitor).


Applications and usage:

• Remote technical rooms monitoring
• Drug storage with reports from Portal
• Food storage (control of storage conditions, creation of HACCP logs using application software)
• Building environment monitoring
• Remote monitoring of refrigerator or freezer (alert when refrigerator fails, logging of operating and storage conditions)
• Detection of water flooding at the point
• Heating optimization (savings in heating and air conditioning costs)

Sensors
Up to 15 external temperature sensor values can be connected to STE2 PLUS. Sensors can be daisy-chained from RJ11 port. One physical sensor can measure several values (°C + %RH = 2 sensor values). The maximum limit is 15 sensor values in total.

Compatible Sensors & Detectors

• Temperature sensors (Indoor / Outdoor / Cryo)
• Calibrated temperature sensors
• Relative Humidity sensors (Indoor / Outdoor)
• CO2 & VOC sensors
• Light sensor
• AC / DC Current sensors
• AC Voltage sensor (0-230V)
• 4-20 mA sensors (converter) for industrial probes
• Water flood detector (spot detection)
• WLD (Water Leak Detection) Relay with an external sensing cable
• Airflow detector
• Door contact detector
• PIR motion detector
• Gas leak detector
• Power presence (110/230V) detector
• Vibration detector

Typical applications

• Remote technical rooms monitoring
• Drug storage with reports from Portal
• Food storage (control of storage conditions, creation of HACCP logs using application software)
• Building environment monitoring
• Remote monitoring of refrigerator or freezer (alert when refrigerator fails, logging of operating and storage conditions)
• Detection of water flooding (spot/sensing cable)
• Heating and A/C optimization (cost savings)

Specifications

Technical specifications
External power	5V Jack ø3.5x 1.35mm, PoE RJ-45
Temperature range	Operating: -10°C-60°C Storage: -30°C-60°C / 0%RH-95%RH
Dimensions/weight	98 x 68 x 33 (WxHxD) / 91g
Conectivity	LAN, WiFi
External sensors and detectors
Sensors ports	2 RJ11 ports, 15 sensor values in total
Compatible sensors	RJ11 sensors from HW group (1W/1W-UNI)
Sensors you can monitor	Temperature, Relative Humidity, Voltage, AC/DC Current,       Flood detection, CO2, VoC, Light intensity & many more...
Digital Inputs	2× Dry contact input
Communication
M2M Open API	SNMP v1/v2, SNMP v3, XML, HWg-Push
Alarms	Email, SNMP Traps, HWg-Push, SMS & Voice Call (with assistance of SMS-GW3 LTE)
Features	IPv6, VDO (Virtual Digital Outputs)
Software/Services
SensDesk Technology portal	Online remote monitoring service. Graphs, alerts, device management.
HWg-cloud.com	Free of charge portal service
Mobile App	HWg Monitor
Other software	3rd party software, HWg-SDK
