Lanner NCA-2512

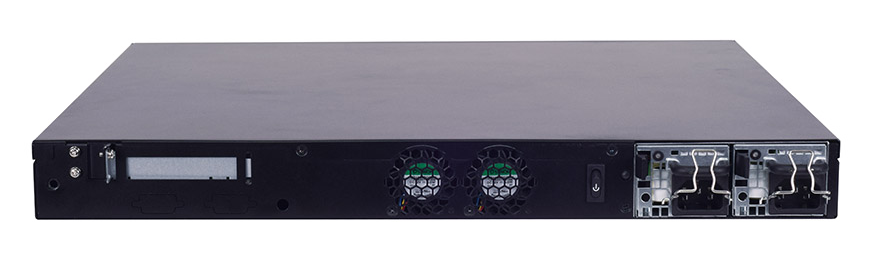

The NCA-2512, a 1U 19” rackmount network appliance with high availability, virtualization-optimized design and Intel® Atom™ C3958 CPU (codenamed Denverton) offers up to 16 cores of processing prowess, 300W redundant PSUs, 10G interface for SFP+, SR-IOV support, Intel® AES-NI and Intel® QuickAssist Technology, running at 20G. It is the ideal solution for vCPE, uCPE, SD-WAN and SD-Security on Intel® architecture servers.

Specifications

Platform
CPU	Intel® Atom™ C3000 8 ~16 Cores (Denverton)
Chipset	SoC
BIOS	AMI SPI Flash BIOS
Memory Technology	DDR4 2400MHz ECC or non-ECC UDIMM
Memory Capacity	32GB
Memory Socket	4 x 288-pin DIMM
Storage
SATA storage	1 x mSATA
I/O
Default LAN	1 x GbE RJ45 Intel® i210 4 x GbE RJ45 Intel® i350-AM4 4 SFP+ Intel® Denverton Integrated (By SKU)
Bypass	2 Pairs Gen3 (by SKU)
Console	1 x RJ45
USB 2.0	2 x Type A
IPMI via OPMA slot	Yes
TPM	Yes (Optional)
Power and Mechanical
Power input	AC Power Inlet on PSU
Type/Watt	300W Power Adapter
Expansion	1 x PCIe*8 HH/HL (Optional)
Reset	Reset Button *1
Processor cooling	Passive CPU Heatsink
System cooling	2 x Cooling Fans w/ Smart Fan
OS and Certifications
Certifications	RoHS
Physical and Environmental
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 40°C
Operating humidity	5% to 95% (non-condensing)
Dimensions (W x H x D)	438 mm x 44 mm x 432 mm (17.24" x 1.73" x 17.01")
Watchdog	Yes
Internal RTC	Yes

Ordering Information

Available Modules
NCA-2512A	Intel C3958 16 Core with QA + 5x GbE + 4x SFP+, 1x NIC (PCIE8/PCIE2X4)
