Advantech UNO-4673A / UNO-4683
prodgraf


Intel® Atom™ / Core™ i7 Automation Computers with 6 x LAN, 2 x COM and 3 x Expansion Slotsnsion Slots


Eigenschaften


Beschreibung

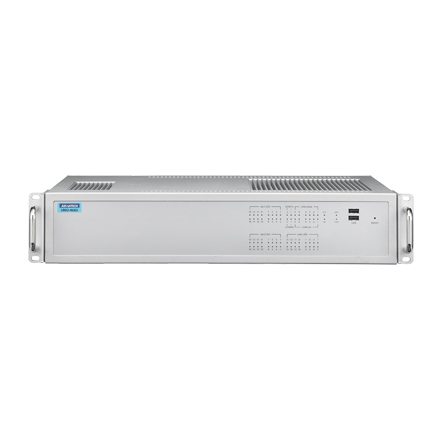

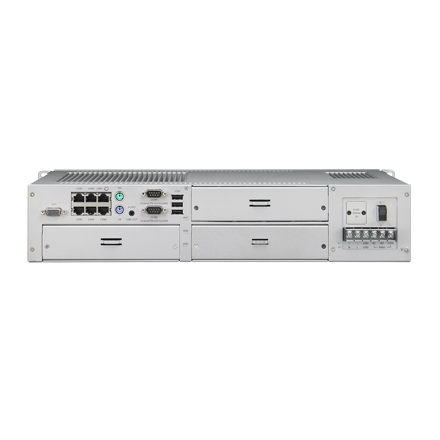

UNO-4673A and UNO-4683 are compliant with the hardware requirements of IEC 61850-3, which defines the international standards of network and system communications in power substations. Featuring fanless designs with built-in isolated PSU and 3 expansion slots for I/O plug-in cards, UNO-4673A and UNO-4683 are suitable for harsh environment applications. The rear I/O connection and LEDs on front panel for all ports and modes highly simplify monitoring for operation and maintenance.



ProdGrafik

Weitere Informationen

General

Certification
IEC 61850-3, IEEE 1613, CE, FCC Class A, UL, CCC

Dimensions (W x D x H)
2U (440 x 280 x 88) mm (17.3" x 11" x 3.4") fits into standard 19 inch rack

Enclosure
SECC

Mounting
2U Rackmount

Power Consumption
45W (Typical)

Power Requirements
AC : 100 ~ 240 V AC (47 ~ 63 Hz)
DC : 106 ~ 250 V DC
With isolation protection, AT

Weight
6.0 kg

OS Support
WES, Windows XP Embedded, Windows /XP, Windows CE 6.0, Linux, QNX

System Design
Fanless

Remote Management
Built-in Advantech DiagAnywhere agent on Windows CE/XPe


System Hardware

CPU
Intel Dual Core Atom D510 1.66 GHz / Core i7 2.0 GHz

Memory
2G DDR2 SDRAM/4G DDR3 SDRAM built-in

Indicators
LEDs for Power, IDE, Alarm for battery backup SRAM, Diagnosis (programmable), LAN (Active, Status) and Serial (Tx, Rx)

Keyboard/Mouse
2 x PS/2 connector for Keyboard & Mouse

Storage
CF 1 x internal type I/II CompactFlash® slot
HDD       1 x build-in 2.5" SATA HDD bracket
*RAID capable with 2nd HDD kit

Display
DB15 VGA connector, 2048 x 1536 @ 85 Hz(UNO-4673A)
1 x DVI-I, 1 x DVI-D (UNO-4683)

Watchdog Timer
Programmable 7-tier event handler, from 1 to 255 seconds for each tier

Battery Backup SRAM
1 MB

Relay:
Relay output:       Form C
Contact: 5A@250V AC5A@30V DC


I/O Interface

Serial Ports
2 x DB-9
Automatic RS-485 data flow control
2000 V DC EFT protection & 2000 VDC isolation

Serial Port Speed RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 921.6 kbps (Max.)

LAN
2 x 10/100/1000 Base-T RJ-45 ports,teaming function supported
4 x 10/100Base-T RJ-45 ports

Audio
Line-out

USB Ports
6 x USB, UHCI, Rev. 2.0 compliant
2 x Front, 3 x Rear and 1 x Internal ports

Expansion
3 x Domain I/O expansions (Only slot 1 supports PCIe resource)


Environment

Humidity
95% @ 40°C (non-condensing)

Operating Temperature
IEC 60068-2-2 with 100% CPU/ I/O loading, 48 hrs -20 ~ 70°C

Operating Humidity
20 ~ 95% (non-condensing)

Shock Protection
IEC 60068-2-27 CompactFlash®: 50 G half sine, 11 ms
HDD: 20 G half sine, 11 ms

Vibration Protection
IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash®: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz



Ordering Information


UNO-4673A-A33E
UNO-4683-D34E
UNO-4673ADP-A33E
UNO-4683DP-D34E


PDF

Dokumentation PDF Advantech UNO-4673A & UNO-4683 Datasheet (196.4 kB)
