Ideal for CAT5/6/7 cable - see datasheet for recommendation
Compatible: SUN, PC, Mac
Interface: DVI, USB, RS232, RJ45
HD-KVM Full 1080p
24 bit colour
Plug and play
100m extension distance on single CATx; unlimited using standard IP network
500m to 10km over fiber
Dual Link or dual head configuration
2560 x 1600@60Hz maximum resolution, View 2560x 1600 or two 1920x 1200 sessions
USB mass storage supported plus: Keyboard, mouse tablet and touch
Support for MacPro
Redundant network operation
Compatible with AdderLink Infinity Matrix
Pure digital media extension over IP featuring dual head & dual link video. Featuring Full DVI, Digital Audio, USB True Emulation, Network Multicast, Device Switching and EPG style user interface. Full dual link DVI resolution.
The next addition to the ADDERLink INFINITY digital KVM matrix range.
ADDERLink INFINITY dual allows you to build a flexible infrastructure, the likes of which have not been possible before. Locate computers anywhere you like, share connections to computers, watch the interactions others have with computers, share control, collaborate, switch computers, and so on.
The ADDERLink INFINITY range is also the first of its kind to allow multicasting across your network. The ADDERLink INFINITY dual interfaces USB peripherals such as the keyboard, mouse or graphics tablet, together with DVI for the video display, over a layer 3, standard gigabit ethernet network, on copper or fiber.
Dual Link DVI - Dual Head DVI - Dual IP Carrier Type (copper & fiber)
Fully compatible with the ADDERLink INFINITY Matrix range.
Dual link or dual head DVI The ADDERLink INFINITY dual features full DVI connectivity for either dual link or dual head applications. DVI delivers native digital video signals from your computer to your digital panel (LCD for example) without the need to convert signal types from the digital domain. By delivering native digital video throughout the ADDERLink INFINITY network, you can be assured of accuracy on each and every pixel.
Network Topology - CATx or fiber You can configure your network topology to best suit your needs. If you simply want to extend one computer Tx to one user Rx, you can do so by connecting both Tx and Rx units via a low cost CATx cable or fiber. Distance is not limited - a single copper network cable will deliver IP traffic up to 100 meters away. If you want to go further, simply add a network switch in to achieve an additional 100 meters. This can be done as many times if you wish. The ADDERLink INFINITY network is assumed to be a private network which you manage. As such, you can control maximum data rates generated by each Tx unit to ensure absolute stability.
Perfect Digital Video The ADDERLink INFINITY makes use of multiple video encode technologies devised by Adder to deliver the very best picture available. Our encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.
USB True Emulation Like the ADDERLink INFINITY, the ADDERLink INFINITY dual enables you to connect any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Furthermore, most other USB devices can also be attached, such as Mass Storage devices.
USB 2.0 The ADDERLink INFINITY dual uses USB 2.0 connectivity to interface with your keyboard and mouse, and any other peripheral you wish to use. USB is the most broadly used computer peripheral interface standard available.
Digital Stereo Audio ADDERLink INFINITY dual delivers crystal clear stereo audio digitally across the network. This ensures continuous fidelity and channel separation between the Tx and Rx units, or even in Multicast environments.
A.I.M./API Control Using A.I.M. gives access to advanced management functions including an EPG style on screen displaying a window which appears in front of the users screen detailing the channels available to them. An administrator can specify different channels and permissions for each user.
RS232 Interface The ADDERLink INFINITY dual includes a bidirectional RS232 interface which can be used to connect devices such as touch screens, simple printers or to control external equipment, and feedback remote data sources.
Hardware compatibility All computers with DVI (inc. dual head and dual link), USB, Audio, RS232 - requirement dependent
Software compatibility All known operating systems

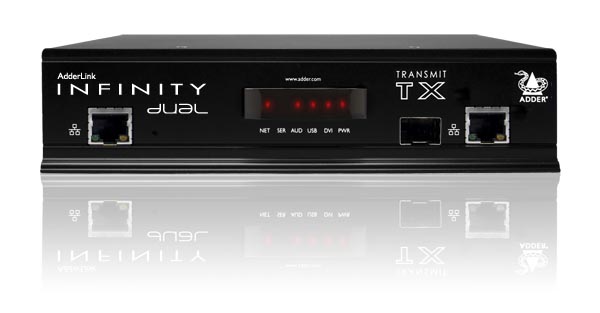

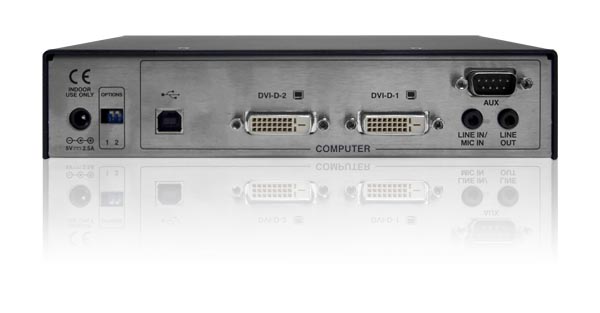

Computer connections Transmitter (Tx) DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B, RS232 9 pin D-Type, SFP slot
Computer connections Receiver (Rx) Video: DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type A x 4, RS232 9 pin D-Type, SFP slot
