Advantech UNO-2174A
prodgraf


Intel® Atom™ N450 Automation Computers with 6 x USB, 8 x COM, 2 x Mini PCIe


Eigenschaften


Beschreibung

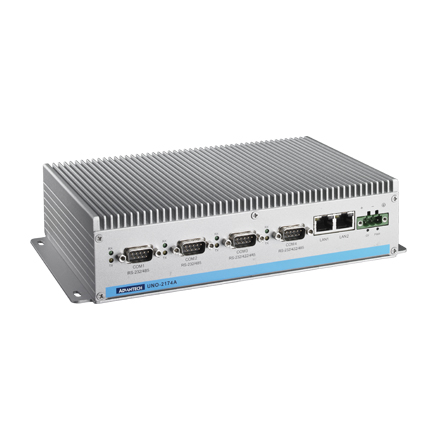

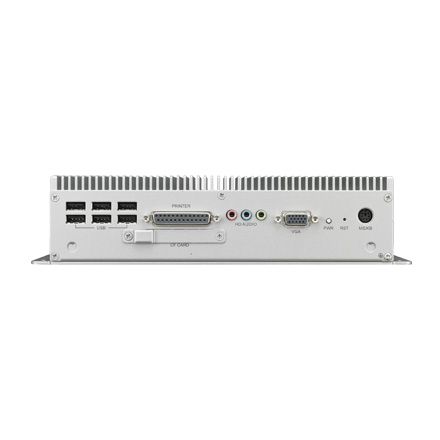

The UNO-2174A and UNO-2178A are Embedded Automation Computers equipped with Intel Atom N450/D510 CPUs, Gigabit Ethernet ports, rich I/O, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures (-10 ~ 70°C), providing high performance and high versatility with low power consumption. The UNO-2174A and UNO-2178A are economic new computing platforms for manufacturing executing systems, facility automation, and industrial thin client applications. With an additional daughterboard, the UNO-2174A and UNO-2178A support 1 x PC/104 and 1 x PCI-104 plug-in cards for further expansion.



ProdGrafik

Weitere Informationen

General

Certification
Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI

Dimensions (W x D x H)
UNO-2174A-A23E: 255 x 152 x 50 mm (10" x 6.0" x 2.0")
UNO-2174A-A33E: 255 x 152 x59mm(10"x6.0"x2.3")
UNO-2178A: 255 x 152 x 59 mm (10" x 6.0" x 2.3")

Enclosure
Aluminum +SECC

Mounting
DIN-rail, Wallmount, VESA

Industrial Grounding
Isolation between chassis and power ground

Power Consumption
UNO-2174A: 12 W (Typical)
UNO-2178A: 16 W (Typical)
Power Requirements
9 ~ 36 V DC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX

Power Suspend Mode
S3, S4

Weight
2.5 kg

OS Support
Windows XP/7, WES7, WES-2009, CE 6.0, Advantech Linux, QNX

System Design
Fanless design with no internal cabling

Remote Management
Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7


System Hardware

CPU
UNO-2178A: Intel Atom D510 Dual Core 1.66 GHz
UNO-2174A: Intel Atom N450 1.6 GHz /D510 1.66GHz

Memory
2 GB DDR2 SDRAM built-in

Indicators
LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)

Keyboard/Mouse
1 x PS/2

Storage
CF: 1 x rear type I/II CompactFlash® slot
HDD: 1 x built-in 2.5" SATA HDD/SSD bracket (Not available when PCI-104 expansion is being used)

Display
DB15 VGA connector, UNO-2174A supports
up to 1400 x 1050, UNO-2178A supports
up to 2048 x 1536

Watchdog Timer
Programmable 256 levels timer interval, from 1 to 255 sec

Expansion
2 x Mini PCIe
1 x SIM card slot

Printer Port
1 x Printer port (UNO-2174A)
Daughterboard (Additional purchase required)

Expansion Slot
PC/104+ and PCI-104 support (+5 & 3.3V power)
(HDD slot is not available when PCI-104 slot is being used)
2 x Mini PCIe card slots and 1 x SIM card slo


I/O Interface

Serial Ports
UNO-2174A:
2 x RS-232/485 (COM1-2),
2 x RS-232/422/485 w/ 128kB FIFO(COM A-B)

UNO-2178A:
2 x RS-232/485 (COM1-2),
2 x RS-232/422/485 w/ 128kB FIFO (COM A-B),
4 x RS-232/485 from DB25 connector (COM3-6)

Serial Port Speed
50-115.2 kbps (COM 1-6 in RS-232/485 mode)
50-115.2 kbps (COM A/B in RS-232 mode, 921.6kbps peak performance)
50-921.6 kbps (COM A/B in RS-422/485 mode)

LAN
2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)

USB Ports
6 x USB 2.0

Audio
Line in, Line out, Mic in (5.1 channel HD audio)


Environment

Humidity
95% @ 40°C (non-condensing)

Operating Temperature
IEC 60068-2-2 with 100% CPU/ I/O loading -10 ~ 70°C (14 ~ 158°F)

Ingress Protection
IP40

Shock Protection
IEC 60068-2-27
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms

Vibration Protection
IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz




Ordering Information

UNO-2174A-A23E
UNO-2178A-A33E
UNO-2174A-A33E


Accessories

UNO-FPM21-AE
EWM-W138H01E
1750006043
1750002842
9656EWMG00E
PCLS-DIAGAW10
UNO-PCM23-AE

PDF

Dokumentation PDF Advantech UNO-2174A Datasheet (275.5 kB)
