Digital temperature sensor for indoor and outdoor usage. The sensor is designed for using with the Poseidon, Ares, HWg - STE and other HW group products.
You can have several parallel sensors on one RJ11 sensor port. Each one sensor is identified by a unique serial number.
You can have several parallel sensors on one RJ11 sensor port. Each one sensor is identified by a unique serial number.
Temperature & Humidity sensors & Accessories
Star topology – up to 60m + T-Box
Daisy chain – 60m maximum total length
4 active ports - 4x 60m
- HTemp-1Wire 3m
Temperature & Humidity sensor (-30 to +80°C, 0 to 100% RH). 3 meter long cable with 1-Wire connector RJ11, encased in black covering.
- HTemp-1Wire Box2
Temperature & Humidity sensor (-10 to +80°C, 0 to 100% RH). Boxed sensor designed for internal use, 2x RJ11 daisy-chainable 1-Wire, 3m cable included.
- HTemp-1Wire Rack19
Temperature &Humidity sensor (-10 to +80°C, 0 to 100% RH). 1U rack mount housing, 2x RJ11 daisy-chainable 1-Wire, 3m cable included. Sensor designed for 19" rack cabinets.
- Humid-1Wire 1m / 3m/ 10m
Humidity sensor (0 to 100% RH) on a 1m / 3m / 10m long cable with 1-Wire connector RJ11, encased in black covering.
- HTemp-1Wire Outdoor 3m
Temperature & Humidity outdoor sensor (-30 to +85°C, 0 to 100% RH). 3 meter long cable with 1-Wire connector RJ11. Sensor encased in outdoor metal tube.
- T-Box
Hub for connecting 1 to 5 sensors to 1-Wire bus (5x RJ11), 10 cm connecting cable.
- T-Box2
Hub for connecting 1 or 2 sensors to 1-Wire sensors (RJ11), 3 m connecting cable.
- Temp-1Wire 3m IP67
Temperaturesensor (-10°C to +80°C), on a 3 meter long cable with 1-Wire connector RJ11. Watertight (IP67) sensor probe, stainless steel 17241.
- Temp-1Wire 10m IP67
Temperature sensor (-10°C to +80°C), on a 10 meter long cable with 1-Wire connector RJ11. Watertight (IP67) sensor probe, stainless steel 17241.
- Temp-1Wire 1m /3m/10m
Temperature sensor (-10°C to +80°C), on a 1 / 3 / 10 meter long cable with 1-Wire connector RJ11, encased in white covering.

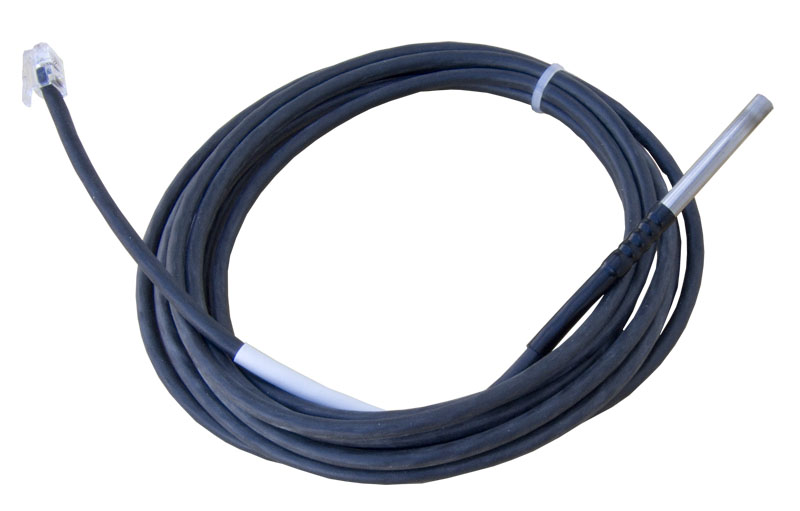

- Temp-1Wire-Outdoor 3m
Temperature outdoor sensor (-50°C to +125°C) -Multi-purpose watertight (IP67) sensor probe, stainless steel 17241 with PVC cable 3m, 1-Wire connector RJ11.

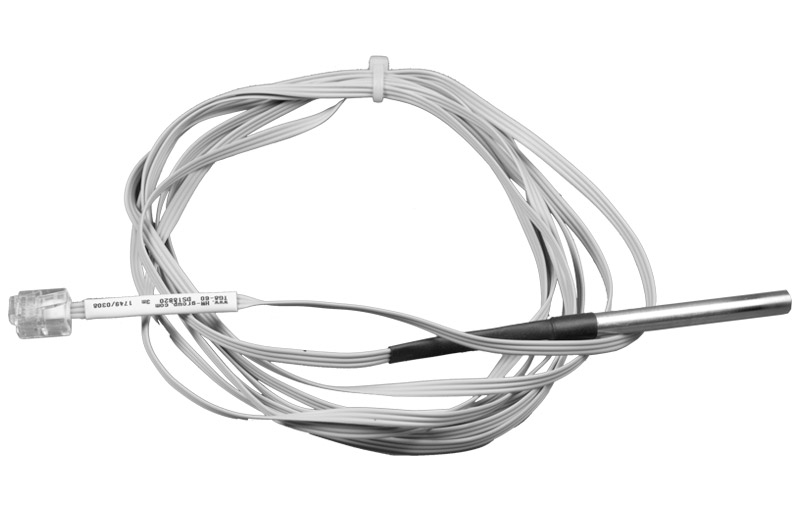

- Temp-1Wire-Flat 3m
Temperature sensor for freezers (-30 to +60°C), watertight (IP67) stainless steel 17241 probe, flat cable 3m, 1-Wire connector RJ11.

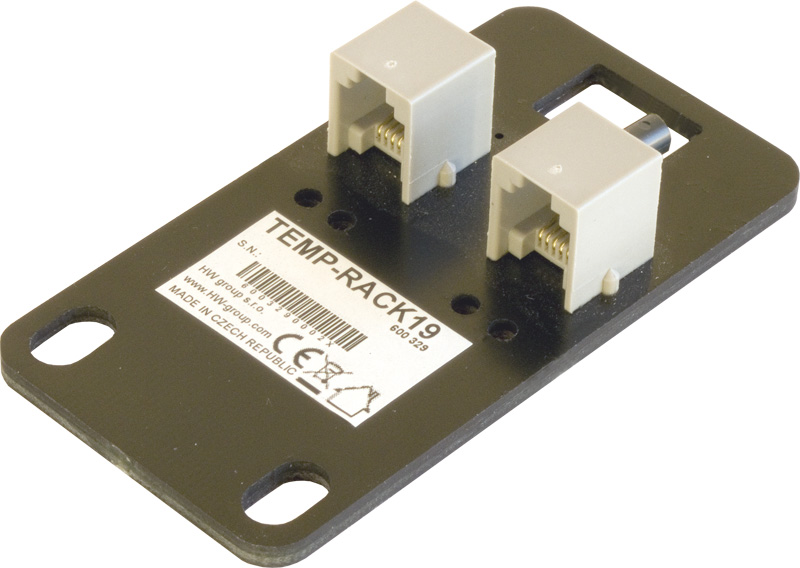

- Temp-Rack19
Temperature sensor (-10 to +80°C), 1U rack mount housing, 2x RJ11 daisy-chainable 1-Wire, 3m cable included. Sensor designed for 19" rack cabinets

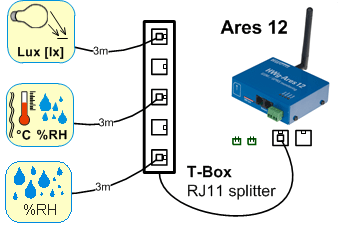

Star topology – up to 60m + T-Box
- Sensors can be connected in parallel using a T-Box or T-Box2 splitter.
- Total wiring length should not exceed 60 meters from an active port.
- Combined temperature+humidity sensor appears as 2 different sensors. Two different IDs.

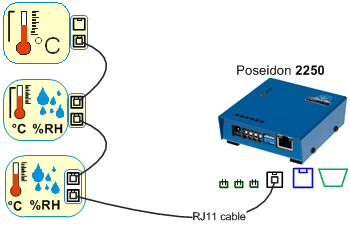

Daisy chain – 60m maximum total length
- Some sensors feature a RJ11 connector for daisy-chain (serial) connection.
- 3m connection cable is usually included.
- Total wiring length should not exceed 60 meters from an active port.

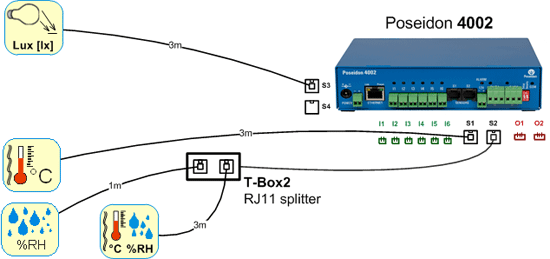

4 active ports - 4x 60m
- After autodetection, sensors cannot be moved between individual active ports. When a sensor connection changes, autodetection needs to be re-done.
- Total wiring length should not exceed 60 meters from an active port.
