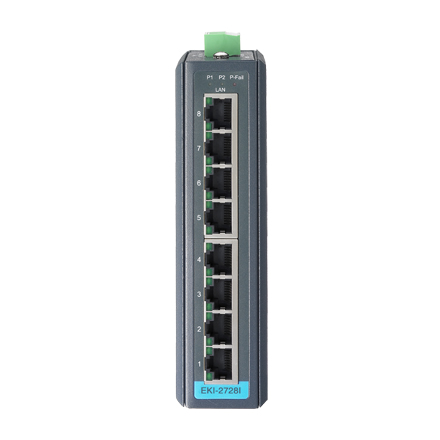

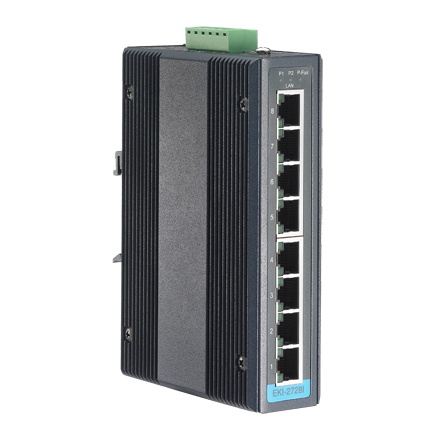

Advantech EKI-2728I

prodgraf


8-port Gigabit Unmanaged Industrial Ethernet Switch



Eigenschaften


Beschreibung

The EKI-2725/2728 supports Gigabit Ethernet. The power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725/2728 will automatically get back to normal operation state. Each port of EKI-2725/2728 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725/2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.



ProdGrafik

Weitere Informationen

Part Number              EKI-2728I-AE


Environment

Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)


I/O

Transmission Distance
Ethernet: up to 100 m

Transmission Speed
10/100/1000Mbps


Power Supply

Power Input
2 x Unregulated 48 VDC

Power Connector
6-pin removable screw terminal


General

Ethernet Connectors
8 x RJ-45

Mounting
DIN-rail, Wall


Interface

Ports Number
8




PDF

Dokumentation PDF Advantech EKI-2728I Datasheet (381.2 kB)
