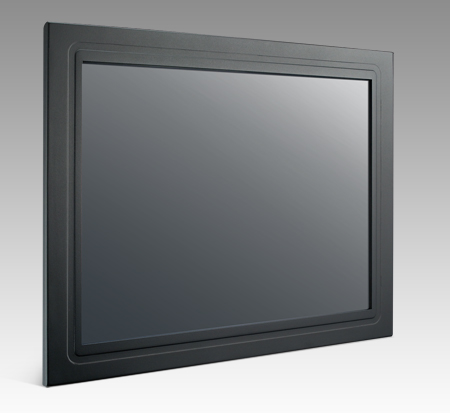

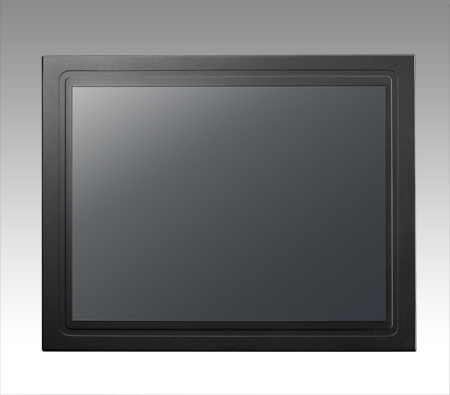

Advantech IDS-3215

15" XGA Industrial Panel Mount Monitor

Advantech IDS-3215
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • 15" XGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20° ~ +60° C wide range operating temperature
  • 5-wire resistive touchscreen solution or tempered smudge resistant protected glass
  • Combo touch interface: RS-232 and USB
  • Dual signal interface with VGA & DVI
  • Standard integrated frame

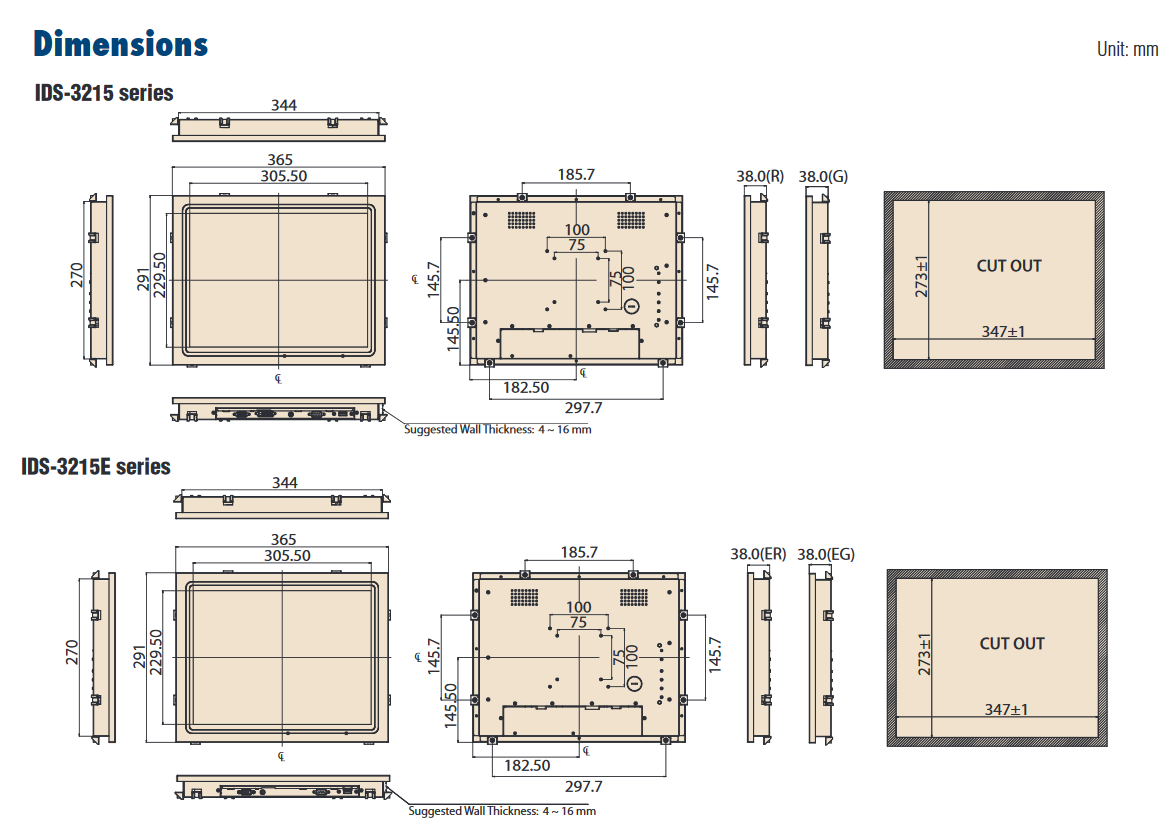

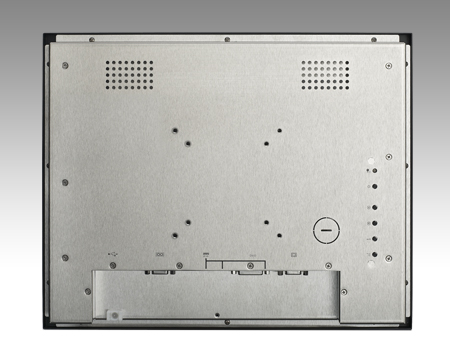

  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m 2 for outdoor applications (optional)
The Advantech IDS-3215 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
ProdGrafik

Model IDS-3215 IDS-3215E
Display
Size 15" LED panel 15" LED panel
Resolution 1024 x 768 (XGA) 1024 x 768 (XGA)
Viewing Angle 80°/80° (H), 70°/70° (V) 80°/80° (H), 70°/70° (V)
Brightness 400 (cd/m2) 250 (cd/m2)
Color Support 16.2M / 262K colors 16.2M
Contrast Ratio 700:1 700:1
Response Time 25 [msec] 16 [msec]
Backlight Life (hrs) 50,000 hrs 50,000 hrs
Touchscreen
T/S Type 5-Wire Resistive Touchscreen -
Surface Hardness 3H -
Durability 10 million touches -
Transparency 80%+/-3% -
Environment
Operating Temperature -20 ~ 60° C (-4 ~ 140° F) 0~ 45° C (32 ~ 113° F)
Storage Temperature -30 ~ 70° C (-22 ~ 158° F) -20 ~ 60° C ( -4 ~ 140° F)
Humidity 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
5-500 Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
System

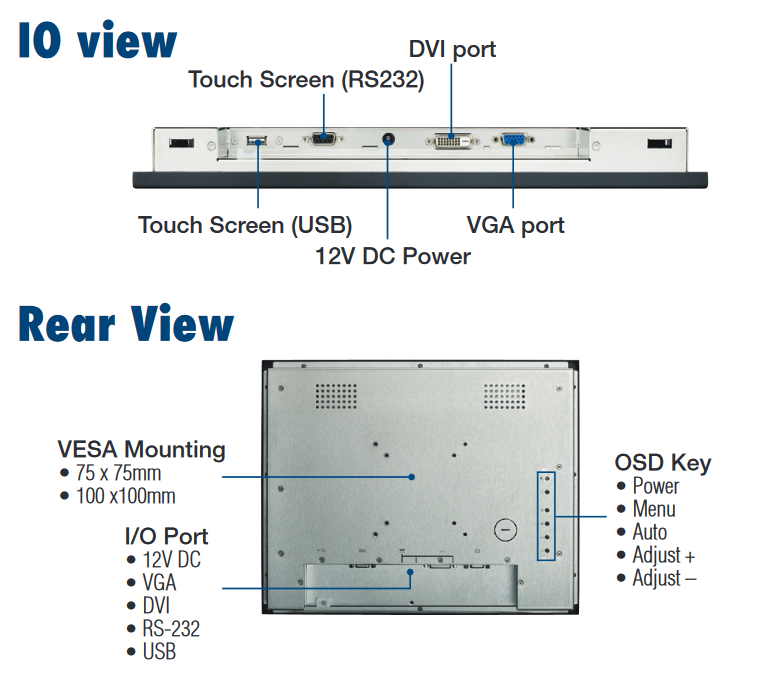

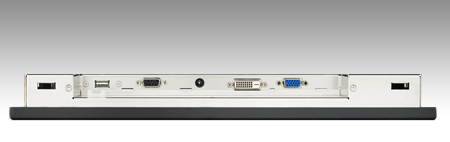

I/O VGA x 1; DVI-D x 1; 12 V DC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) VGA x 1; 12 V DC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only)
OSD Keys: menu, up, down, auto adjust, monitor power on/off
Menu Functions: brightness, contrast, screen settings, color temp, language OSD settings, VGA/ DVI , recall , auto adjust
Keys: menu, up, down, auto adjust, monitor power on/off
Menu Functions: brightness, contrast, color adjust, color temp, auto color, and language
Power 60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output 60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output
EMC Compliance CE/FCC/CCC CE/FCC/CCC




PACKING LIST
1700002215 1 x M cable USB-A(M)/USB-A(M) 180 cm
1700021332-11 1 x VGA cable 15P(M) 180 cm
1962055040 8 x clamper
1935042520 8 x clamper screw M4_25L
1992610005 1 x cable clamp
1933030500 1 x cable clamp screw
1992602010 1 x cable tie


    * USB Cable is only included in IDS-3215R and IDS-3215ER series.
    Note: Package contents are subject to change without prior notice




ORDERING INFORMATION
IDS-3215G-40XGA1E 15" XGA 400 cd/m2 LED Panel Mount Monitor
IDS-3215R-40XGA1E 15" XGA 400 cd/m2 LED Panel Mount Touch Monitor
IDS-3215EG-25XGA1E 15" XGA 250 cd/m2 CCFL Panel Mount Monitor
IDS-3215ER-25XGA1E 15" XGA 250 cd/m2 CCFL Panel Mount Touch Monitor
Optional Items
1700018705 3-Pin power cord (EU)
96PSA-A60W12R1-1 ADAPTER AC100-240V 60W +12V/5A
1700000243-11 DVI cable 2.0 meter
1700091800 CABLE 9P/9P 1.8M M/F (T/S RS-232 Cable)
