Advantech IDS-3212

12" SVGA / XGA Industrial Panel Mount Monitor

Advantech IDS-3212
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • 12.1" SVGA / XGA LCD panel with LED backlight for 20% power savings, and environmental protection
  • -20° C ~ +60° C wide range operating temperature
  • 5-wire resistive touch screen solution or 3mm tempered smudge resistant protected glass
  • Combo touch interface, both RS-232 and USB
  • Dual signal interface with VGA & DVI
  • Standard integrated frame
  • Versatile mounting method for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m2 for utdoor applications (optional)
The Advantech IDS-3212 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation, and flexibility for different applications.
ProdGrafik

Model NIDS-3212 (XGA) IDS-3212 (SVGA) IDS-3212E (SVGA)
Display
Size 12.1" LED panel 12.1" LED panel 12.1" LED panel
Resolution 1024 x 768 (XGA) 12.1" LED panel 12.1" LED panel
Viewing Angle 80°/80° (H), 70°/70° (V) 80°/80° (H), 65°/75° (V) 80°/80° (H), 65°/75° (V)
Brightness 600 (cd/m2) 450 (cd/m2) 450 (cd/m2)
Color Support 16.2M/262K colors 16.2M/262K colors 16.2M/262K colors
Contrast Ratio 700:1 700:1 700:1
Response Time 16 [msec] 35 [msec] 35 [msec]
Backlight Life (hrs) 50,000 hrs 50,000 hrs 50,000 hrs
Touchscreen
T/S Type 5-Wire Resistive Touch Screen - -
Surface Hardness 3H - -
Durability 10 million touches - -
Transparency 80% ± 3% - -
Environment
Operating Temperature -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F) 0~ 45° C (32 ~ 113° F)
Storage Temperature -30 ~ 70° C (-22 ~ 158° F) -30 ~ 70° C (-22 ~ 158° F) -20 ~ 60° C ( -4 ~ 140° F)
Humidity 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing
Vibration 5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
System

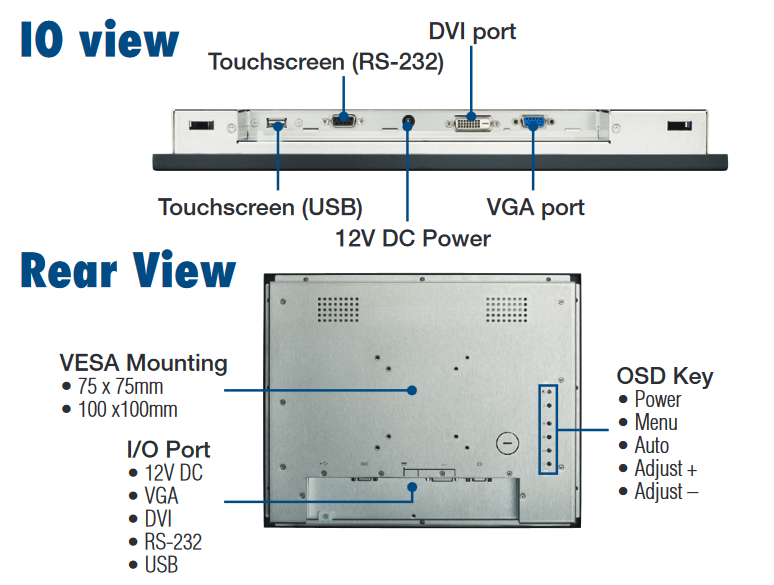

I/O VGA x 1; DVI-D x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) VGA x1; DVI-D x 1; 12 V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) VGA x 1; 12 V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only)
OSD Keys; Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Function: Brightness, Contrast, Screen Setting, Color Temp, Language OSD settings, VGA/DVI, Recall, Auto Adjust
Keys; Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Screen Setting, Color Temp, Language OSD Settings, VGA/DVI, Recall, Auto Adjust.
Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, and Language
Power 36 W power adapter, with AC 100 ~ 240 V input and DC +12V @ 3 A output 36 W power adapter, with AC 100 ~ 240 V input and DC +12V @ 3 A output 36 W power adapter, with AC 100 ~ 240 V input and DC +12V @ 3 A output
EMC Compliance CE/FCC/CCC CE/FCC/CCC CE/FCC/CCC




PACKING LIST
1700002215 1 x M Cable USB-A(M)/USB-A(M) 180CM
1700021332-01 1 x VGA cable 15P(M) 180 cm
1962055040 4 x Clamper
1935042520 4 x Screw of clamper M4_25L
1992610005 1 x Cable clamp
1933030500 1 x Screw of cable clamp
1992602010 1 x Cable tie



    * USB Cable is only included with IDS-3212R and IDS-3212ER series.
    Note: Package contents are subject to change without prior notice.




ORDERING INFORMATION
IDS-3212G-60XGA1E 12.1" XGA 600 cd/m2 LED Panel Mount Monitor
IDS-3212R-60XGA1E 12.1" XGA 600 cd/m2 LED Panel Mount Touch Monitor
IDS-3212G-45SVA1E 12.1" SVGA 450 cd/m2 LED Panel Mount Monitor
IDS-3212R-45SVA1E 12.1" SVGA 450 cd/m2 LED Panel Mount Touch Monitor
IDS-3212EG-45SVA1E 12.1" SVGA 450 cd/m2 LED Panel Mount Monitor
IDS-3212ER-45SVA1E 12.1" SVGA 450 cd/m2 LED Panel Mount Touch Monitor
Optional Items
170203183C 3-Pin power cord (EU)
96PSA-A36W12R1 Adaptor AC100-240V 36W +12V/3A
1700000243-11 M cable DVI 19P(M)/DVI 19P(M) 191cm
1700091800 CABLE 9P/9P 1.8M M/F (T/S RS-232 Cable)
