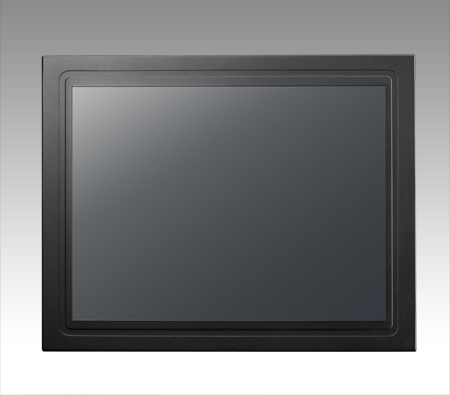

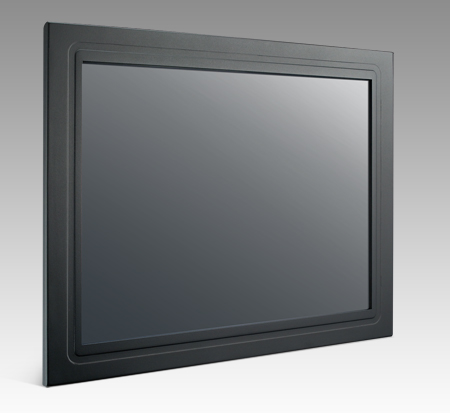

Advantech IDS-3210

10.4" SVGA Industrial Panel Mount Monitor

Advantech IDS-3210
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • 10.4" SVGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20° C ~ +60° C wide range operating temperature
  • 5-wire resistive touchscreen solution or tempered smudge resistant protected glass
  • Combo touch interface: RS-232 and USB
  • Dual signal interface with VGA & DVI
  • Standard integrated frame

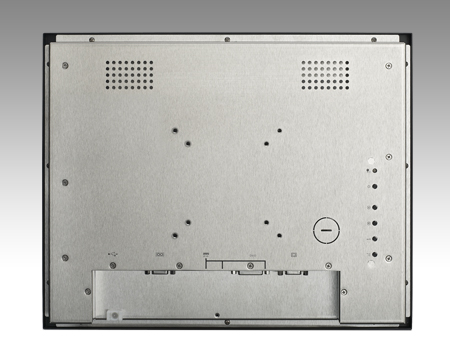

  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m 2 for outdoor application (optional)
The Advantech IDS-3210 Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
ProdGrafik

Model IDS-3210 IDS-3210E
Display
Size 10.4" LED panel 10.4" LED panel
Resolution 800 x 600 (SVGA) 800 x 600 (SVGA)
Viewing Angle 80°/80° (H), 60°/80° (V) 80° /80° (H), 60° /70° (V)
Brightness 400 (cd/m2) 230 (cd/m2)
Color Support 16.2M / 262K colors 16.2M / 262K colors
Contrast Ratio 700:1 500:1
Response Time 30 [msec] 35 [msec]
Backlight Life (hrs) 50,000 hrs 30,000 hrs
Touchscreen
T/S Type 5-Wire Resistive Touchscreen -
Surface Hardness 3H -
Durability 36 million touches -
Transparency 81%+/-3% -
Environment
Operating Temperature -20 ~ 60° C (-4 ~ 140° F) 0~ 45° C (32 ~ 113° F)
Storage Temperature -30 ~ 70° C (-22 ~ 158° F) -20 ~ 60° C ( -4 ~ 140° F)
Humidity 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing
Vibration 5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
5-500Hz, 0.026G²/Hz, 2.16Grms, X, Y, Z
1 hour per axis
System

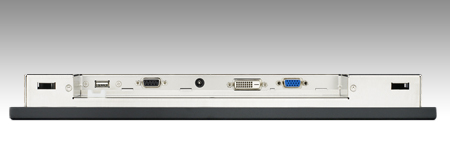

I/O VGA x 1; DVI-D x 1; 12 V DC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only) VGA x 1; 12 V DC Jack x 1; USB x1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only
OSD Keys: menu, up, down, auto adjust, monitor power on/off
Menu Functions: brightness, contrast, screen settings, color temp, language OSD settings, VGA/DVI, recall, auto adjust
Keys: menu, up, down, auto adjust, monitor power on/off
Menu Functions: brightness, contrast, color adjust, color temp, auto color and language
Power 36 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 3 A output 36 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 3 A output
EMC Compliance CE/FCC/CCC CE/FCC/CCC




PACKING LIST
1700002215 1 x M Cable USB-A(M)/USB-A(M) 180 cm
1700021332-01 1 x VGA cable 15P(M) 180 cm
1962055040 4 x clamper
1935042520 4 x clamper screws M4_25L
1992610005 1 x cable clamp
1933030500 1 x cable clamp screw
1992602010 1 x cable tie


    * USB Cable is only included in IDS-3210R and IDS-3210ER series.
    Note: Package contents are subject to change without prior notice.




ORDERING INFORMATION
IDS-3210G-40SVA1E 10.4" SVGA 400 cd/m2 LED Panel Mount Monitor
IDS-3210R-40SVA1E 10.4" SVGA 400 cd/m2 LED Panel Mount Touch Monitor
IDS-3210EG-23SVA1E 10.4" SVGA 230 cd/m2 LED Panel Mount Monitor
IDS-3210ER-23SVA1E 10.4" SVGA 230 cd/m2 LED Panel Mount Touch Monitor
Optional Items
170203183C 3-Pin power cord (EU)
96PSA-A36W12R1 Adapter 100-240V 36W 12V 3A
1700000243-11 M cable DVI 19P(M)/DVI 19P(M) 191cm
1700091800 CABLE 9P/9P 1.8M M/F (T/S RS-232 Cable)
