HW group Temp-485-Pt100

Temp-485-Pt100 is a family of several thermometers for various conditions and temperature ranges. Temperature is measured using an accurate Pt100 or Pt1000 probe. Connects to the RS-485 bus. Temperature sensor is designed for connection to a Poseidon2 LAN measuring unit but can be used stand-alone as well.

Temp-485-Pt100 communicates over a 4-wire bus (RS-485 + power). Up to 24 sensors can be connected to a single bus with a total length of up to 1000 meters (Poseidon2 4002). The measured temperature is communicated over RS-485 in °C using a simple text-based protocol.

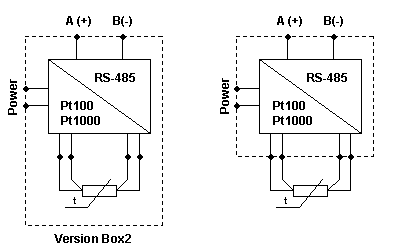

Temp-485-Pt100 is available in several versions. The “Box2” temperature sensor includes the temperature probe in a sensing rod. Other versions use a wall-mountable RS-485 converter and an external temperature probe on a cable.

The temperature probe is always included.


Temp-485-Pt100 Box2

Wall-mountable thermometer. The probe is in the tip of the rod protruding from the plastic box.

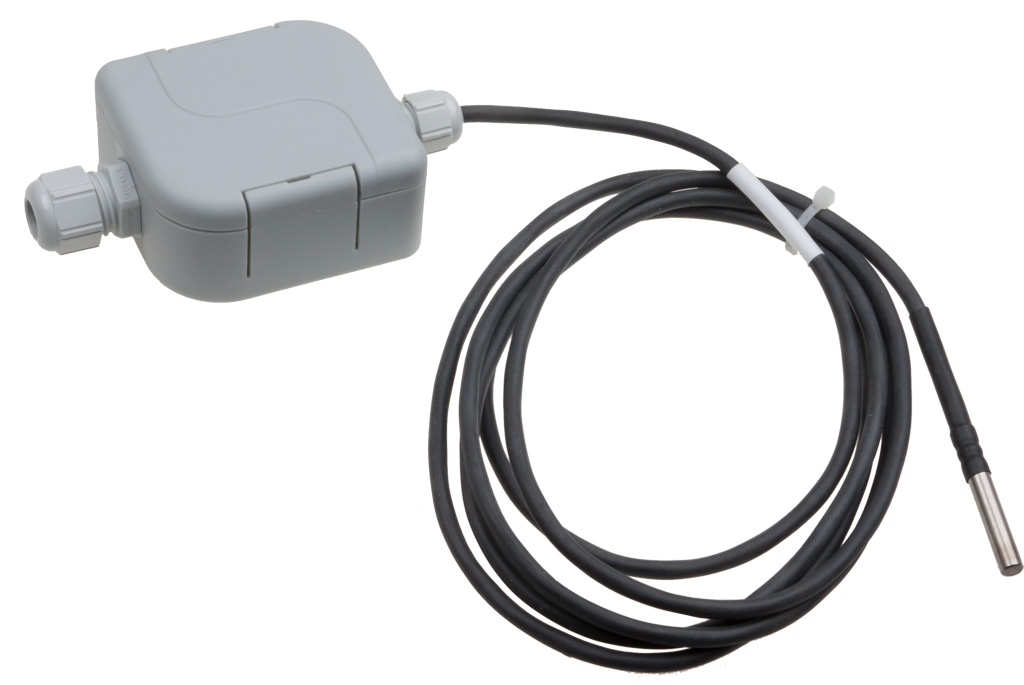

Temp-485-Pt100 Cable3

Wall-mountable box with the RS-485 / temperature probe converter. A Pt100/A probe (included) is connected with a 2m cable.

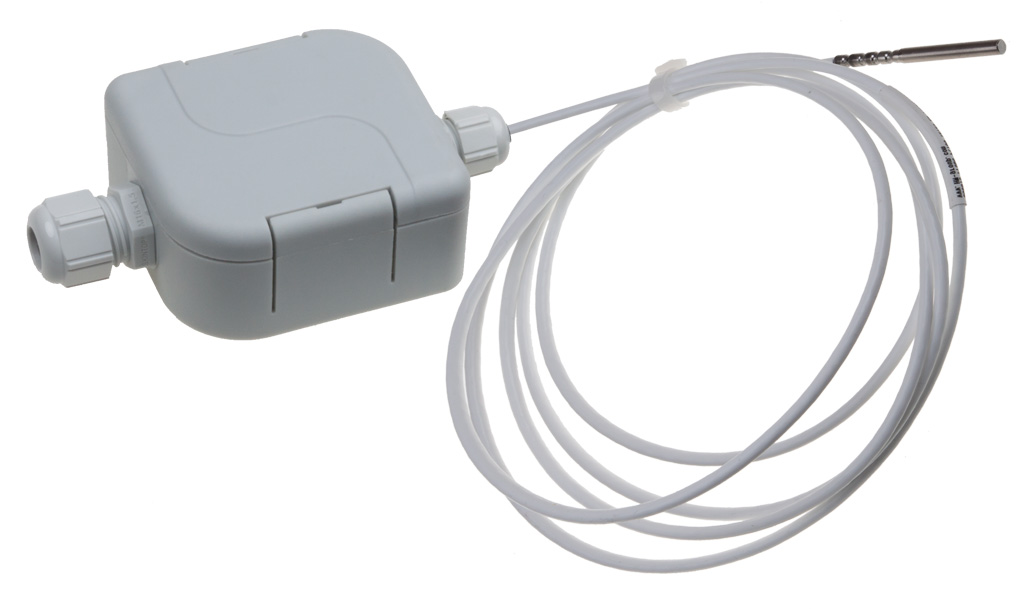

Temp-485-Pt100 Frost2

Thermometer for measuring low temperatures, consists of a wall-mountable box with the RS-485 / temperature sensor converter.
A Pt100/B probe (included) is connected with a 2m cable.

Applications

• Industrial systems involving accurate temperature measurement
• Cooling plants with built-in temperature probes
• Accurate measurement of temperature in a wide range
• Large-scale measurement systems with many measuring points
• Measuring HVAC and environment conditions in smart buildings
• Independent measurements in food and crop storages
• Food plants and warehouses, difficult measurement conditions
• Temperature measurements in pharmaceutical storages


• Designed to work with Poseidon2 (only RS-485 enabled models) – temperature data transferred over LAN or Internet
  • Option to store the readings (data logger) and read them over LAN (SNMP, Modbus/TCP)
  • Works with the SensDesk.com online portal
  • Works with the HWg-Trigger monitoring application and the HWg-PDMS data logging application

Temp-485-Pt100 Box2

Designed for wall mounting. The probe is in the tip of the rod protruding from the plastic box. The thermometer can be wall-mounted while maintaining IP65 protection.

Main parameters
Probe temperature range	–30°C to +70°C (–22 to 160°F)
Measuring element	Pt100/A
External dimensions	62 x 144 x 35 mm
Cover	IP65 (EN 60 529)
Output	RS-485 (recommended for Poseidon2 4002)

Temp-485-Pt100 Cable3

Temperature probe on a cable with a RS-485 converter in a wall-mountable box.
The external temperature probe (included) is on a 2m cable in a stainless-steel rod.

Main parameters
Probe temperature range	–50°C to +200°C (–58°F to +390°F)
Measuring element	Pt100/A (IP67 protection)
External dimensions	62 x 95 x 35 mm
Cover	–30 to +70°C (–22 to +160°F)
Output	RS-485 (recommended for Poseidon2 4002)

Temp-485-Pt100 Frost2

Temperature sensor for very low temperatures.
The RS-485 converter in a plastic box can be wall-mounted. The external temperature probe (included) is in a stainless-steel enclosure on a 2m Teflon cable.

Main parameters
Probe temperature range	–190°C to +150°C (–310°F to +300°F)
Measuring element	Pt100/A (IP67 protection)
External dimensions	62 x 95 x 35 mm
Cover	–30 to +70°C (–22 to +160°F)
Output	RS-485 (recommended for Poseidon2 4002)

Ordering

Temp-485-Pt100 Box2	Box2 is a temperature sensor for wall-mounting with RS-485 output. Temperature is measured by an accurate Pt100/A external probe. Temperature range is –30 to +70°C (–22 to +160°F), IP65 protection. Can be used with Poseidon2 4002.
Temp-485-Pt100 Cable3	Cable3 is a temperature sensor with a RS-485 output. The temperature probe is external, on a cable. The converter can be wall-mounted. Temperature is measured by an accurate Pt100/A external probe on a 2m silicon cable. Temperature range is –50 to +200°C (–58 to +390°F), IP67 protection. Can be used with Poseidon2 4002.
Temp-485-Pt100 Frost2	Frost2 is a temperature sensor with an external probe on a cable for very low temperatures. The converter to RS-485 can be wall-mounted. Temperature is measured by a Pt100/B external probe on a 2m PTFE cable. Temperature range is –190 to +150°C (–310 to +300°F). Can be used with Poseidon2 4002.
Poseidon2 – RS-485 accessories
Sensor RJ45 MIDDLE cable	RS-485 connecting cable, 0.5m. RJ45/4 terminal block pins (A, B, +, - ). (3 pairs)
Sensor RJ45 LAST cable	RS-485 connecting cable, 0.5m. Use for the last (or the only) sensor on the bus (2 pairs). RJ45/4 terminal block pins (A, B, +, - ).
Poseidon S-Hub	Hub to connect up to 8 sensors to the RS-485 bus (8x RJ45)
