C&T Solution VCO-6000 Series
Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH
- LGA 1151 socket for 6th/7th Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor
- Intel® Q170 chipset
- 2x DDR4 SODIMM. max up to 32GB
- Triple independent display supported by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x 2.5” SATA HDD Bay, 2x mSATA (shared by 2x mini PCIe), and 1x CFast supporting RAID 0, 1, 5, 10
- 3x full-size mini PCIe for communication or expansion modules
- 4x RS-232/422/485 (w/ 2x internal), 4x USB 3.0, TPM 2.0
- 8x DI + 8x DO with isolation
- 9 to 50VDC wide range power input supporting AT/ATX mode
- -25°C to 70°C extended operating temperature
The VCO-6000 series adopts 7th Gen. Intel® Core™ i7-7700T (3.8GHz, Quad Core) / i5-7500T (3.3GHz, Quad Core) / i3-7101TE (3.4GHz, Dual Core) or 6th Gen. Intel® Core™ i7-6700TE (3.4GHz, Quad Core) / i5-6500TE (3.3GHz, Quad Core) / i3-6100TE (2.7GHz, Dual Core) or Pentium® G4400TE (2.4GHz, Dual Core)/ Celeron® G3900TE (2.3GHz, Dual Core) Desktop processor (LGA 1151) which promises breakthrough performance and power efficiency over previous micro-architectures for high performance graphics, dramatic high-resolution video playback, outstanding system performance and responsiveness, and stronger security. It is designed with customers in mind to deliver an excellent system performance, higher reliability and robustness in a compact construction.
Delivering rich user experience, the VCO-6000 series implements DVI-I and 2x DisplayPort triple independent display outputs for video and image applications. Moreover, the VCO-6000 series features a fanless design with optional fan module to regulate air flow and sustain optimum internal chassis temperature. It provides isolated DIO, flexible wide voltage range 9V – 50V DC power input and wide operating temperature from -25°C to 70°C so it can really support the add-on cards’ full performances even in harsh condition.
There is an array of expansion interfaces on VCO-6000 series to meet different demands of each customer. The 2 Mini PCIe slots can be used for LTE, 3G, GSM, and WLAN wireless communication. For expansion interface, it supports up to 2 PCI/PCI Express slots which can be used to install a variety of PCI, PCIe x4 or PCIe x16 including different motion control card, frame grabber card, video capture card, I/O cards, and communication cards.
To make things easier such as installation and maintenance, this series solution features single-side access I/O, accessible storage design and standard mounting configurations for DIN-rail mounting and wall mounting. In addition, it’s rugged and cable-free design are focused to increase reliability, extend Mean Time To Repair (MTTR) and decrease maintenance efforts.
With its uncompromising industrial construction, the VCO-6000 series is constructed with extruded aluminum and heavy duty metal which enables it to adapt for continuous operation under adverse condition. In addition, it is engineered to balance the act between higher computational speed and lower power consumption to produce minimal heat which has an optimize effect on its lifespan and functional safety.
The VCO-6000 series offers abundant grade features, all-in-one integrated features, various I/O connection, flexible expansion features, and smart manageability to provide customers highly reliable and manageable embedded solution. Moreover, its fanless, noiseless operation, unique thermal solution, and rugged reliability features makes it an excellent solution for multiple applications like machine vision, motion control, digital surveillance and factory automation.
Specification
System
- Processor
Support 6th & 7th Gen Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Desktop Processor (LGA 1151)
- 7th Gen Intel® Core™ i7-7700T, Quad Core, 8MB cache, up to 3.8 GHz
- 7th Gen Intel® Core™ i5-7500T, Quad Core, 6MB cache, up to 3.3 GHz
- 7th Gen Intel® Core™ i3-7101TE, Dual Core, 3MB Cache, 3.4 GHz
- 6th Gen Intel® Core™ i7-6700TE, Quad Core, 8MB Cache, up to 3.4 GHz
- 6th Gen Intel® Core™ i5-6500TE, Quad Core, 6MB Cache, up to 3.3 GHz
- 6th Gen Intel® Core™ i3-6100TE, Dual Core, 4MB Cache, 2.7 GHz
- Intel® Pentium® G4400TE, Dual Core, 3MB Cache, 2.4 GHz
- Intel® Celeron® G3900TE, Dual Core, 2MB Cache, 2.3 GHz
System Chipset
Intel® Q170 Express Chipset
LAN Chipset
GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE)
GbE2: Intel® I219LM (Support Wake-on-LAN and PXE)
Audio Codec
Realtek ALC888S
System Memory
2x DDR4 1866/2133MHz SODIMM.
Max. up to 32GB
BIOS
AMI 128Mbit SPI BIOS
Watchdog
Software Programmable Supports 1~255 sec.
System Reset
TPM
TPM 2.0
Display
-
DVI
1x DVI-I
DisplayPort
2x DisplayPort
Multiple Display
Triple Display
Storage
- SSD/HDD
2x Removable 2.5" SATA HDD Bay
Support RAID 0, 1, 5, 10
mSATA
2x mSATA (shared by 2x Mini PCI Express)
CFast
1x CFast
Expansion
- Mini PCI Express
3x Full-size Mini PCIe (shared by 2x mSATA)
I/O
- COM
2x RS-232/422/485
2x RS-232/422/485 (internal)
USB
4x USB 3.0
LAN
2x RJ45
Audio
1x Mic-in, 1x Speaker-out
DIO
8 in / 8 out (Isolated)
Universal I/O Bracket
1x Universal I/O Bracket (By mini PCIe interface)
Others
2x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch
Operating System
- Windows
6th Gen CPU: Windows 10, Windows 7, WES7
7th Gen CPU: Windows 10
Linux
Linux kernel 4.X
Power
- Power
Mode AT, ATX
Power Supply Voltage
9~50VDC
Power Connector
3-pin Terminal Block
Power Adaptor
Optional AC/DC 24V/5A, 120W
Power Protection
OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
- Operating Temp.
-25°C to 70°C
Storage Temp.
-40°C to 85°C
Relative Humidity
10% to 95% (non-condensing)
Vibration
With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock
With SSD: 50G, half sine, 11ms
Standards / Certification
CE, FCC Class A
Physical
- Construction
Extruded Aluminum with Heavy Duty Metal

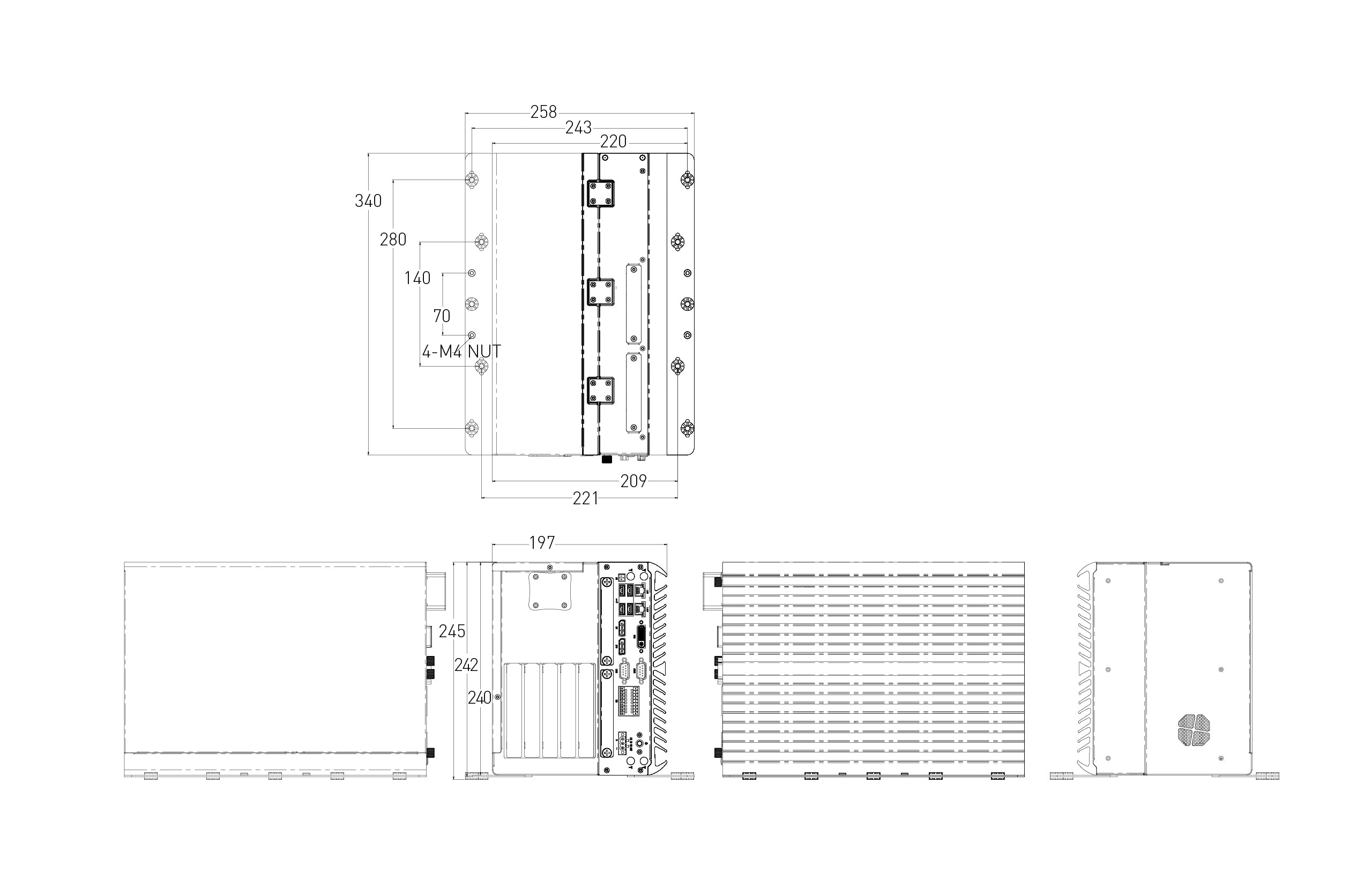

Dimension
77 (W) x 256 (D) x 240 (H) mm
Weight
3.83 kg
Mounting
Wall / Book Mounting
DIN-Rail Mounting (Optional)
Model | Processor | I/O | Expansion | Features |
VCO-6000 | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe | DIO, Wide Temp., Wide Voltage |
VCO-6011E | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151 | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 1x PCIe x16 | DIO, Wide Temp., Wide Voltage |
VCO-6011P | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151 | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 1x PCI | DIO, Wide Temp., Wide Voltage |
VCO-6022E | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 2x PCIe x8 | DIO, Wide Temp., Wide Voltage |
VCO-6022P | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 2x PCI | DIO, Wide Temp., Wide Voltage |
VCO-6022C | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 1x PCIe x16, 1x PCI | DIO, Wide Temp., Wide Voltage |
VCO-6033E | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 2x PCIe x4, 1x PCIe x16, 2x PCIe x1 | DIO, Wide Temp., Wide Voltage |
VCO-6033P | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 3x PCI | DIO, Wide Temp., Wide Voltage |
VCO-6033C | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 1x PCIe x16, 2x PCI | DIO, Wide Temp., Wide Voltage |
VCO-6044P | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 4x PCI | DIO, Wide Temp., Wide Voltage |
VCO-6044C | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 2x PCIe x4, 1x PCIe x8, 1x PCI | DIO, Wide Temp., Wide Voltage |
VCO-6055C | Kabylake & Skylake-S - 7th / 6th Gen. Intel® Core™ i7 / i5 / i3 or Pentium® / Celeron® Desktop Processor (LGA 1151) | 4x COM, 2x LAN, 4x USB | 3x Mini PCIe, 2x PCIe x4, 1x PCIe x8, 2x PCI | DIO, Wide Temp., Wide Voltage |
ORDERING INFORMATION | |
Available Models | |
VCO-6000 | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH |
VCO-6011E | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 1x PCIe x16 |
VCO-6011P | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 1x PCI |
VCO-6022E | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x PCIe x8 |
VCO-6022P | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x PCI |
VCO-6022C | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 1x PCIe x16, 1x PCI |
VCO-6033E | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x PCIe x1, 1x PCIe x16 |
VCO-6033P | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 3x PCI |
VCO-6033C | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 1x PCIe x16, 2x PCI |
VCO-6044P | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 4x PCI |
VCO-6044C | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x PCIe x4, 1x PCIe x8, 1x PCI |
VCO-6055C | Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x PCIe x4, 1x PCIe x8, 2x PCI |
Optional Accessories | |
1-E09A06002 | Adapter AC/DC 12V 5A 60W with 3-pin Terminal Block Plug 5.0mm Pitch |
SFICBL022 | Power Cord, 3-pin US Type, 180cm |
1-TPCD00002 | Power Cord, European Type, 180cm |
1-TPCD00001 | Power Cord, 3-pin UK Type, 180cm |
Packing List
- 1x VCO-6000 Series Embedded System
- 1x Utility DVD Driver
- 1x Wall Mount Kit
- 1x Accessory Kit
- 1x DVI to VGA Adapter
