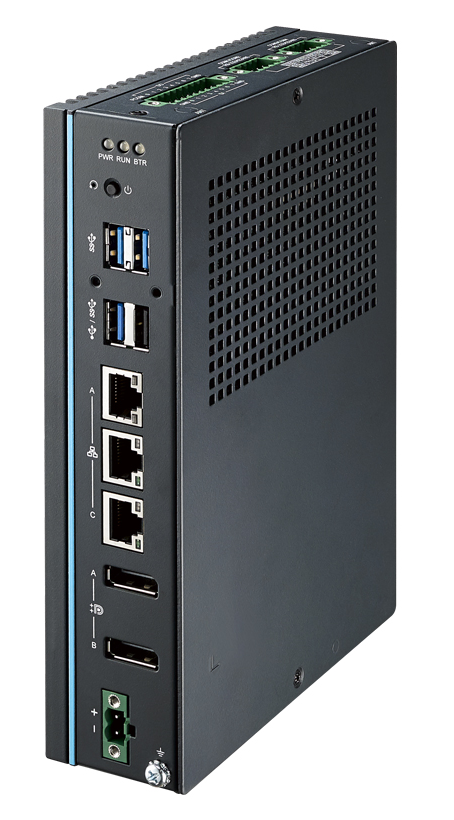

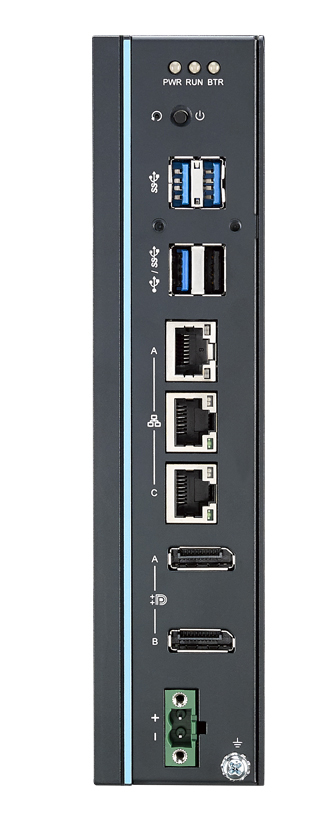

Advantech UNO-148
High-Performance DIN-Rail IoT Controller with Intel® Core™ i 11th generation TigetLake-UP3 CPU
- General operation temperature range (-20~60°C / -4~140°F)
- Port isolation for 8 x DI, 8 x DO, 4 x COM
- Supports M.2 M key 2280 NVMe SSD Storage
- Supports M.2 B+M key 2242 storage and 3042/3052 cellular modules
- Supports M.2 E Key 2230 Wifi modules
- Supports Time-Sensitive Network(TSN) technology
- Remote out-of-band (OOB) power management with Advantech iBMC technology
- Onboard TPM 2.0 to provide hardware security
- Compliant with IEC 61010-1 safety requirements
Advantech’s UNO-100 series are DIN-rail integrated controllers that feature a modular design for flexible configuration according to specific usage requirements.
UNO-148 is a high-performance DIN-rail IoT controller supports TSN feature to fulfill time synchronized application.
UNO-148 is equipped with an 11th Generation Intel® Core™ i Processor with 8GB DDR4 RAM, and 3 x LAN, 4 x COM, 3 x USB 3.0, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.4. The controller also supports 1 x full-size mini PCIe, 1 x M.2 B key,1 x M.2 M Key, 1 x M.2 E key, and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-148 can be equipped with an optional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.
Specifications
- General
- Certification
CE, FCC, UL 61010-2-201, BSMI
Dimensions (W x D x H)
35 x 140 x 200 (1.4 x 5.5 x 7.8 in)
Form Factor
Regular size
Enclosure
Aluminum housing
Mount Option
DIN Rail
Weight (Net)
1.3 kg / 2.86 lb
Power Requirement
10 ~ 36 VDC
Power Consumption
31W (typical), 55W (max.)
- For UNO-148-IS2EA (iDoor+SATA): 61W max.
- For UNO-148-P11EA (PCIe x4): 127W max.
OS Support
Win 10 2019 LTSC, AdvLinux (Ubuntu 18.04)
System Hardware
- BIOS
AMI UEFI 256Mbit
Watchdog Timer
Programmable timer with 255 intervals (1 ~ 255 sec)
Security
TPM2.0 ƒ Processor Intel® Core™ i7-1185G7E quad-core, 1.8 GHz (up to 4.4 GHz)
Intel® Core™ i5-1145G7E quad-core, 1.5 GHz (up to 4.1 GHz)
Intel® Core™ i3-1115G4E dual-core, 2.2 GHz (up to 3.9 GHz)
Memory
8 GB DDR4 SODIMM-3200 (8 x 1 GB)
(up to 64 GB with 2 x slots)
Graphics Engine
Intel® Iris® X
Ethernet
LAN A: Intel® i225-AT GbE, IEEE 802.3AZ/802.1AS
LAN B: Intel® i210-IT GbE, IEEE 802.3AZ/802.1AS
LAN C: Intel® i219-LM GbE, IEEE 802.3AZ/802.1AS
TSN
Only supported via I225 LAN port
IEEE 802.1Qav/802.Qbv
LED Indicators
1 x Power,
1 x RTC battery,
1 x LAN (active, status), and
1 x programmable indicator
Expansion
1 x Full-sized mPCIe (PCIe/USB 2.0 signals)
1 x M.2 (E key) for 2230 Wi-Fi modules (PCIe signals)
1 x M.2 (M key) for 2280 NVMe (PCIe x4 signals)
1 x M.2 (B key) for 2242 SSD (SATA signals) or
3042/3052 cellular modules (USB Signals)
1 x nano SIM card slot
I/O
- Isolated Serial Ports
4 x RS-232/422/485 (terminal block)
50 ~115.2 kbps (isolation protection: 2500 VDC)
LAN
2 x 10/100/1000BASE-T Fast Ethernet (RJ45)
1 x 10/100/1000/2500BASE-T Fast Ethernet (RJ45)
USB
3 x USB 3.2 (Gen 2), 1 x USB 2.0 (Type A)
Isolated DI/O
8 x Digital input channels with 2500 VDC isolation protection
- Wet contact: Logic 0: 10 ~ 30 VDC/ Logic 1: 0 ~ 3 VDC
- Dry contact: Logic 0: Shorted to GND/ Logic 1: Open
8 x Digital output channels
- Output voltage: 5 ~ 30 VDC
- Output capability sink: 500 mA max./channel
Displays
2 x DP 1.4, up to 7680 x 3840 (8K) @ 60 Hz
Power Connector
1 x 2-pin terminal block
Environmental
- Operating Temperature
For TDP @ 15W, -20 ~ 60 °C/-4 ~ 140 °F
For TDP @ 22W, -20 ~ 50 °C/-4 ~ 122 °F with fan kit
Storage Temperature
-40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity
95% RH @ 40 °C/104 °F, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection
Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis (SSD)
Operating, IEC 60068-2-64, 0.3Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
Ingress Protection
IP20
ORDERING INFORMATION
Available Modules | |
UNO-148-B73BA | DIN-rail controller with Intel® Core™ i7-1185G7E quad-core (up to 4.4 GHz), 8 GB DDR4, 3 x LAN, 4 x COM, 4 x USB, 8 x DI/O |
UNO-148-B53BA | DIN-rail controller with Intel® Core™ i5-1145G7E quad-core (up to 4.1 GHz), 8 GB DDR4, 3 x LAN, 4 x COM, 4 x USB, 8 x DI/O |
UNO-148-B33BA | DIN-rail controller with Intel® Core™ i3-1115G4E qual-core (up to 3.9GHz), 8 GB DDR4, 3 x LAN, 4 x COM, 4 x USB, 8 x DI/O |
Extension Kit | |

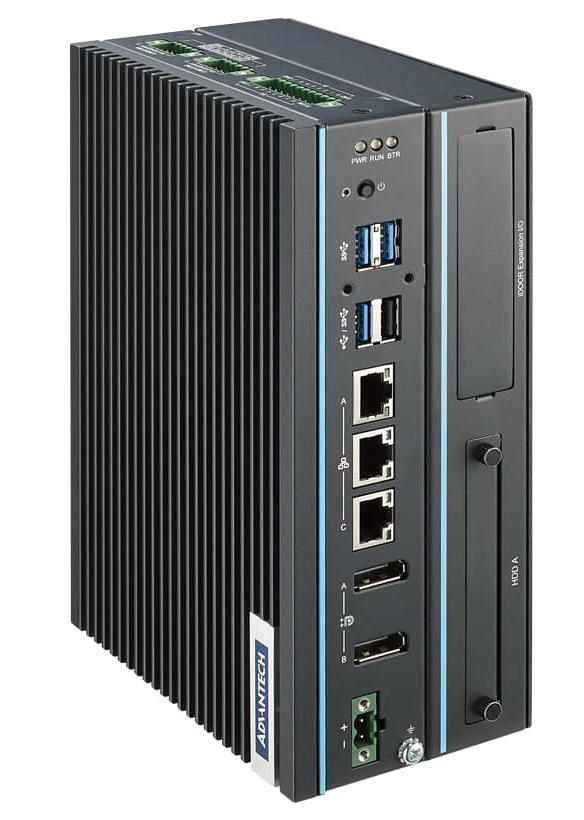

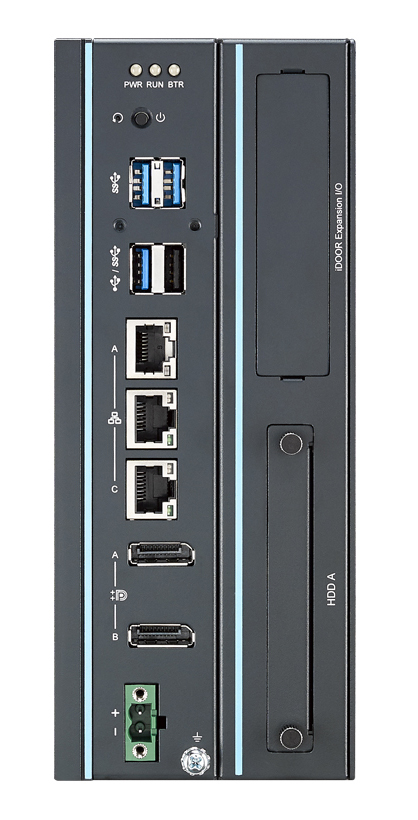

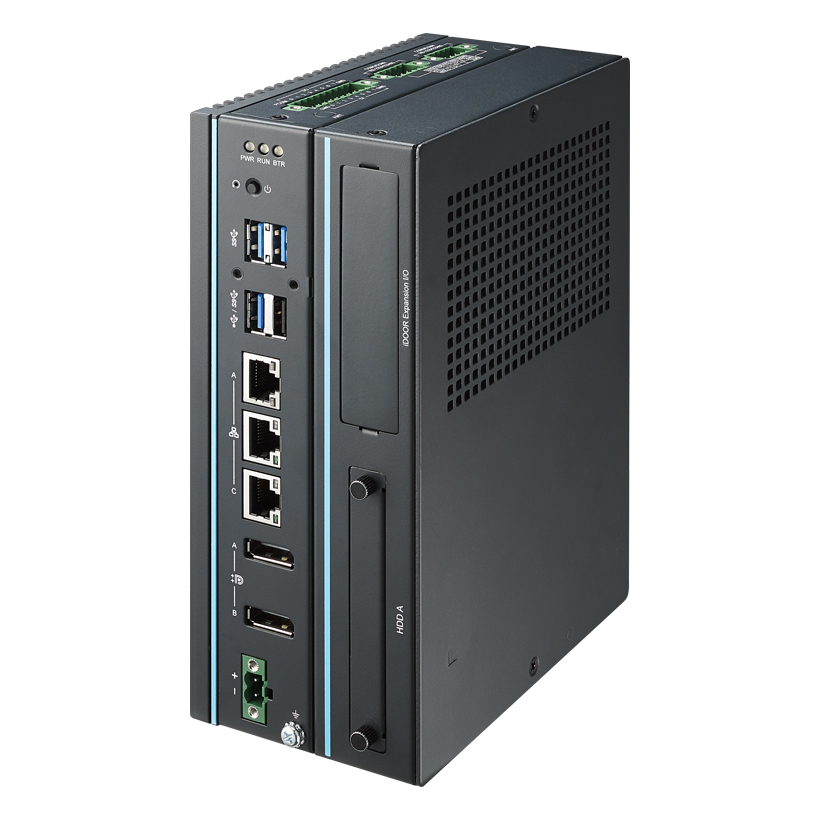

UNO-148-IS2EA | Extension kit with 1 x iDoor slot + 2.5" SSD/HDD Storage slot (Refer to the extension kit datasheet for more details) |
UNO-148-P11EA | Extension kit with 1 xPCIe x4 slot (Refer to the extension kit datasheet for more details) |
Optional Accessories / DIN-Rail Power Supply | |
96PSD-A120W24-MN | A/D 100 ~ 240V, 120W, 24V NDR DIN rail |
PSD-A120W24 | DIN rail A/D 100 ~ 240V, 120W, 24V |
Optional Accessories / Adapter & Power Cable | |
96PSA-A120W19T2-3 | Adaptor A/D 100-240V 120W 19V C14 cord end 62368 |
1702002600 | Power cable US plug, 1.8 M (industrial grade) |
1702002605 | Power cable EU plug, 1.8 M (industrial grade) |
1702031801 | Power cable UK plug, 1.8 M (industrial grade) |
1700000596-11 | Power cable China/Australia plug, 1.8 M (industrial grade) |
