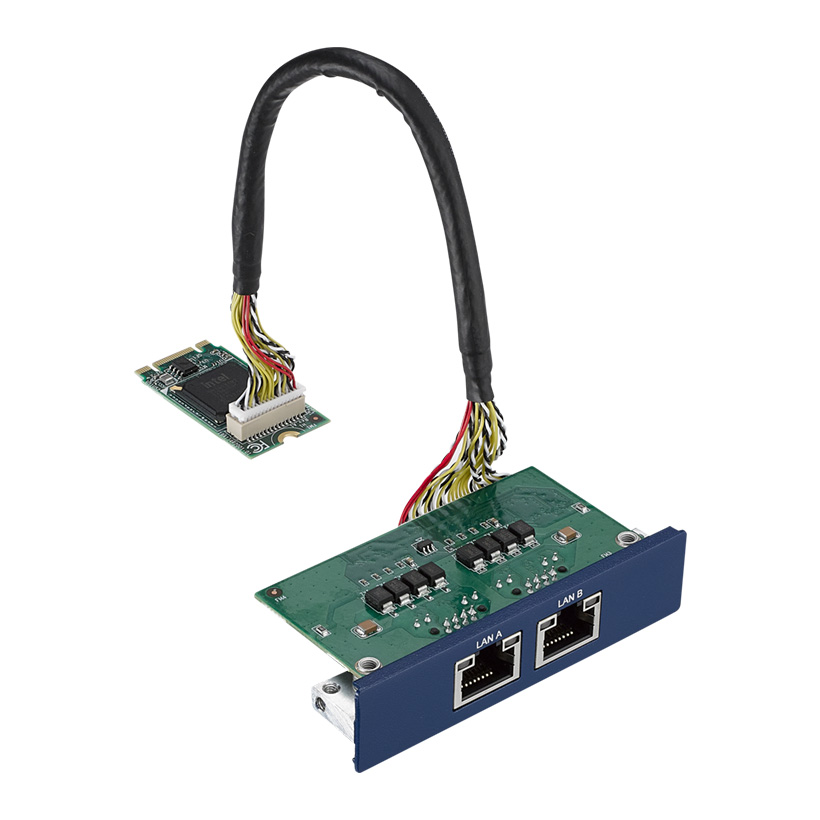

Advantech PCM-34R2GL
2-Port Gigabit Ethernet, Intel® I350, 2x RJ45, B+M Key (2242, PCIex1)
Eigenschaften
Beschreibung
Weitere Informationen
Ähnliche Produkte
Seite drucken
Preis anfragen
zeige Notizliste
PDF
Eigenschaften
Beschreibung
Weitere Informationen
PDF
- Meets Advantech iDoor technology standard
- Dual Gigabit Ethernet Port (RJ45)
- M.2 2242 B+M Key compliant (PCI Express)
- PCIe Gen2 x1 bandwidth specification
- Compatible with embedded automation PC UNO-1/2/3/4 series
- Compliant with FCC/CE Class A Certification
- Supports 32/64-bit Windows 7/8/10 and Linux
- Operation temperature 0~60 degree support
The PCM-34R series can enhance network performance, security, reliability, and provide more flexible network configuration options for specific application scenarios. This is a flexible design that enables customers to customize their features with iDoor Technology.
Specifications
| General | |
|---|---|
| Bus Type | M.2 2242 B+M Key compliant |
| Interface | PCIe Express |
| Connectors | 2 x RJ45 |
| Certification | CE, FCC class A |
| Dimensions | Module: 42 x 30 x 12.4 mm (1.65" x 1.18" x 0.49") I/O Plate: 81 x 19.35 x 39 mm (3.19" x 0.76" x 1.54") |
| Power Consumption | Typical: +3.3 V @ 3 W |
| Communications | |
| LAN Controller | Intel ® I350-AM2 LAN Controller |
| Speed | 10/100/1000 Mbps |
| Support | IEEE 1588 |
| Protection | |
| Isolation Protection | 1,500 V DC |
| ESD Protection | 4KV (Contact), 8KV (Air) |
| EFT Protection | 1,000 V |
| Surge Protection | 1,000 V DC |
| Software | |
| OS Support | Microsoft ® Windows® 7/8/10, Linux |
| Environment | |
| Operating Humidity | 10 ~ 95% RH @ 40 °C/104 °F, non-condensing |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) |
| Storage Temperature | -20 ~ 80°C (-4 ~ 176°F) |
| Ordering Information | |
| PCM-34R2GL-AE | 2-Port Gigabit Ethernet, Intel ® I350, 2x RJ45, B+M Key (2242, PCIex1) |
| Optional Accessories | |
| 1960070469T011 | Heat Sink R1 w/ glue for LAN Controller (20 x 20 x 10 mm) |
